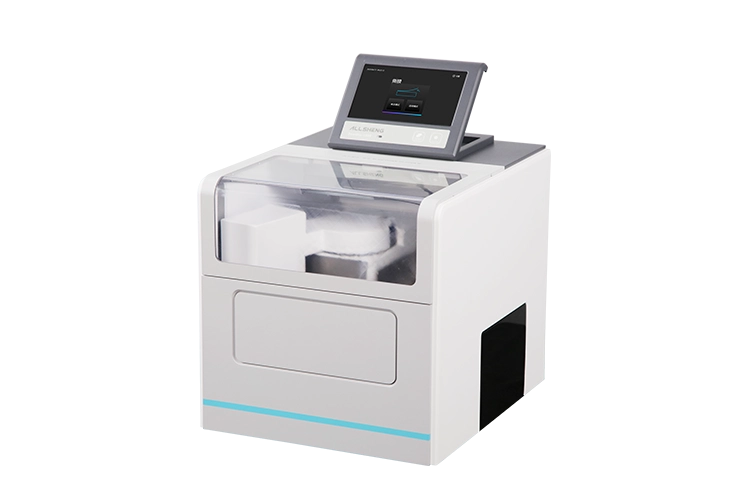

Automated Plate Seal Remover
SealBio-1000
Manually removing plate seals is a common task in laboratories that seems simple, but becomes tedious when hundreds or thousands of plates require seal removal. With the increasing use of high-throughput screening in pharmaceuticals, researches, etc., manually removing seals has become a challenge due to its cumbersome, time-consuming, risk of splatter contamination, and biosafety hazards. The SealBio-1000 automated plate seal remover is developed to resolve these issues. Its automated seal removal offers high efficiency, low contamination risk, and easy integration into automated production lines. It enables on-demand seal removal without requiring continuous operator attendance, thereby preventing contamination, evaporation, and other issues caused by prolonged exposure of samples or reagents.
-

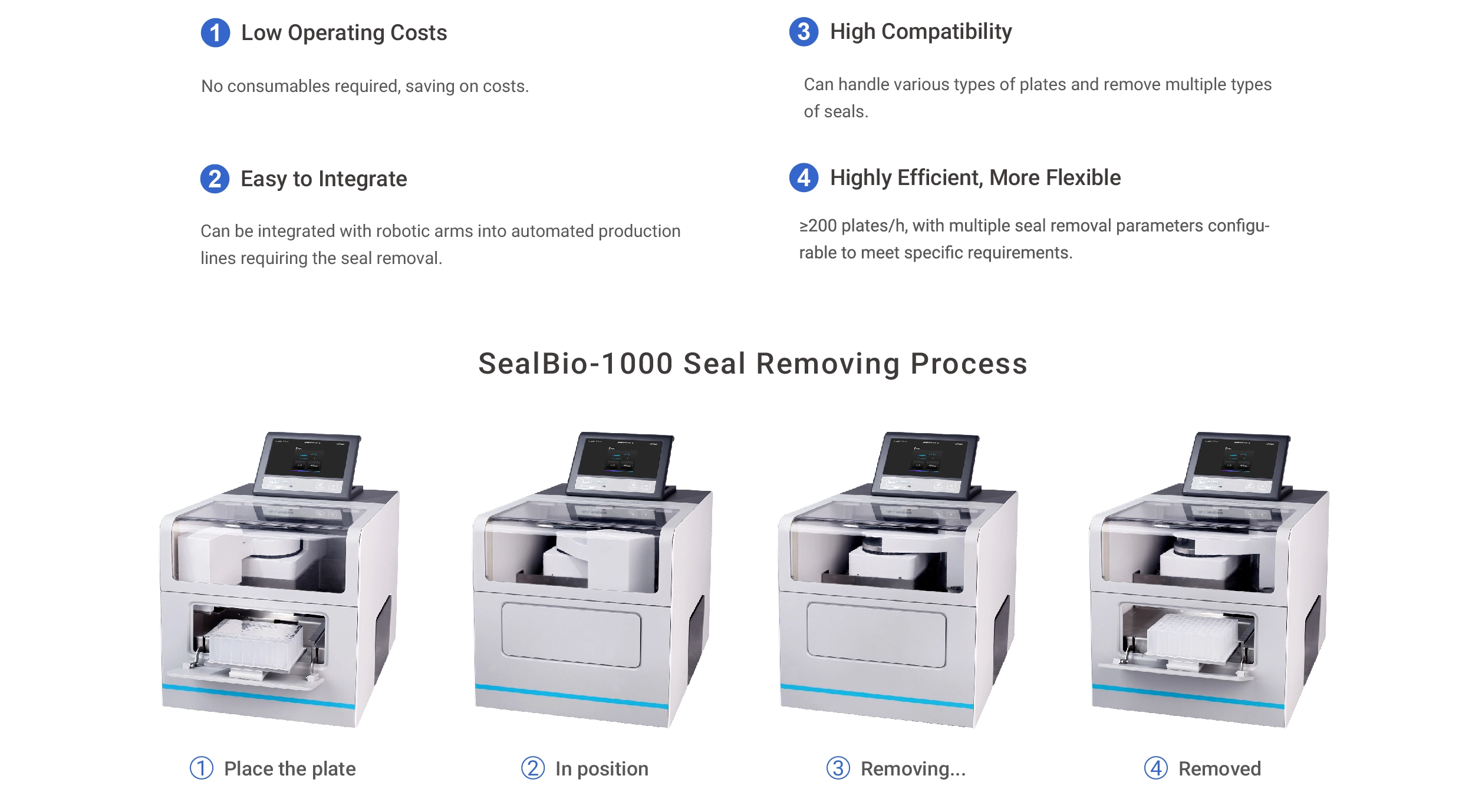

Low operating costs -
Easy to integrate -
High compatibility
Features
| Model | SealBio-1000 |
| Removing method | Mechanical type |
| Removing time | ≤30s/time |
| Consumable height | 14~45 mm |
| Maximum operating speed | 100 mm/s |
| Maximum removing speed | 100 mm/s |
| Removing interval range | 3-99s |
| Removing success rate | 100% |
| Suitable consumables | ANSI / SBS standard full-skirted plates, height range 14~45 mm, including PCR plates, deepwell plates, and ELISA plates |
| Suitable seal film | Pressure sensitive seal, heat seal |
| External port | 1×single-layer USB-A port, 1×USB-B port, and 1×Ethernet port |
| Communication method | TCP / IP communication, supporting automated integration |
| Operating software | Integrated QT software |
| Power supply | AC100~240 V, 50/60 Hz |
| Power | 100 W |
| Dimension | 330×402×377 (W×D×H) |
| Weight | 18.5 kg |
| Code | Product description |
| AS-15070-00 | SealBio-1000 automated plate seal remover |
