Auto-Pure 2400M
  • Auto-Pure 2400M
Nucleic Acid Purification System — Auto-Pure 2400M

Auto-Pure 2400M a high-throughput full automated nucleic acid extraction equipment. Compared with Auto-Pure 2400, in addition to basic functions, it can realize the automation of methylation process.

Auto-Pure 2400M is based on the magnetic bead method to extract nucleic acid. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up can be done automatically in the workstation. One-stop operation, without manual intervention, can extract 24×10 mL samples at the same time, which is more efficient and convenient than manual and semi-automatic extraction. At the same time, standardized and automated operating steps avoid human error, the experimental results are more reliable and repeatable.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

Auto-Pure 2400M.jpg

  • Model
    Auto-Pure 2400M
  • Function
    Automatic pipette samples and reagents, extract nucleic acid and set-up PCR systems
  • Information management
    Support external USB scanner, barcode scanning function, automatic scanning function
  • Pipetting principle
    Air displacement pipetting technology
  • Pipettor
    One 5000 μL pipettor, one 200 μL pipettor
  • Pipetting range (μL)
    1-5000 μL
  • Tips
    Allsheng tips, and other tips compatible with this instrument
  • Liquid detection
    Pressure detection: liquid level detection, tip clogging detection and residual liquid detection
  • Samples per run
    1-24
  • Extraction processing volume
    50-10000 μL
  • Extraction uniformity
    CV≤5 %
  • Single sample consumable
    Support
  • Extraction temperature control
    Elution, lysis temperature control: RT~ 120 ℃
  • Temperature control block
    4 ℃~105 ℃
  • UV sterilization
    Separate UV lamp: extraction area, pipetting area and waste container area
  • Filter
    Equipped with three HEPA filters
  • Instrument port
    USB port
  • Power supply
    220 V, 8 A, 50/60 Hz
  • Power
    Standby 30 W, maximum 600 W
  • Noise
    ≤60 dB
  • Net weight
    130 kg
  • Code
    Model
  • AS-17220-00
    Auto-Pure 2400M
Recommended Products

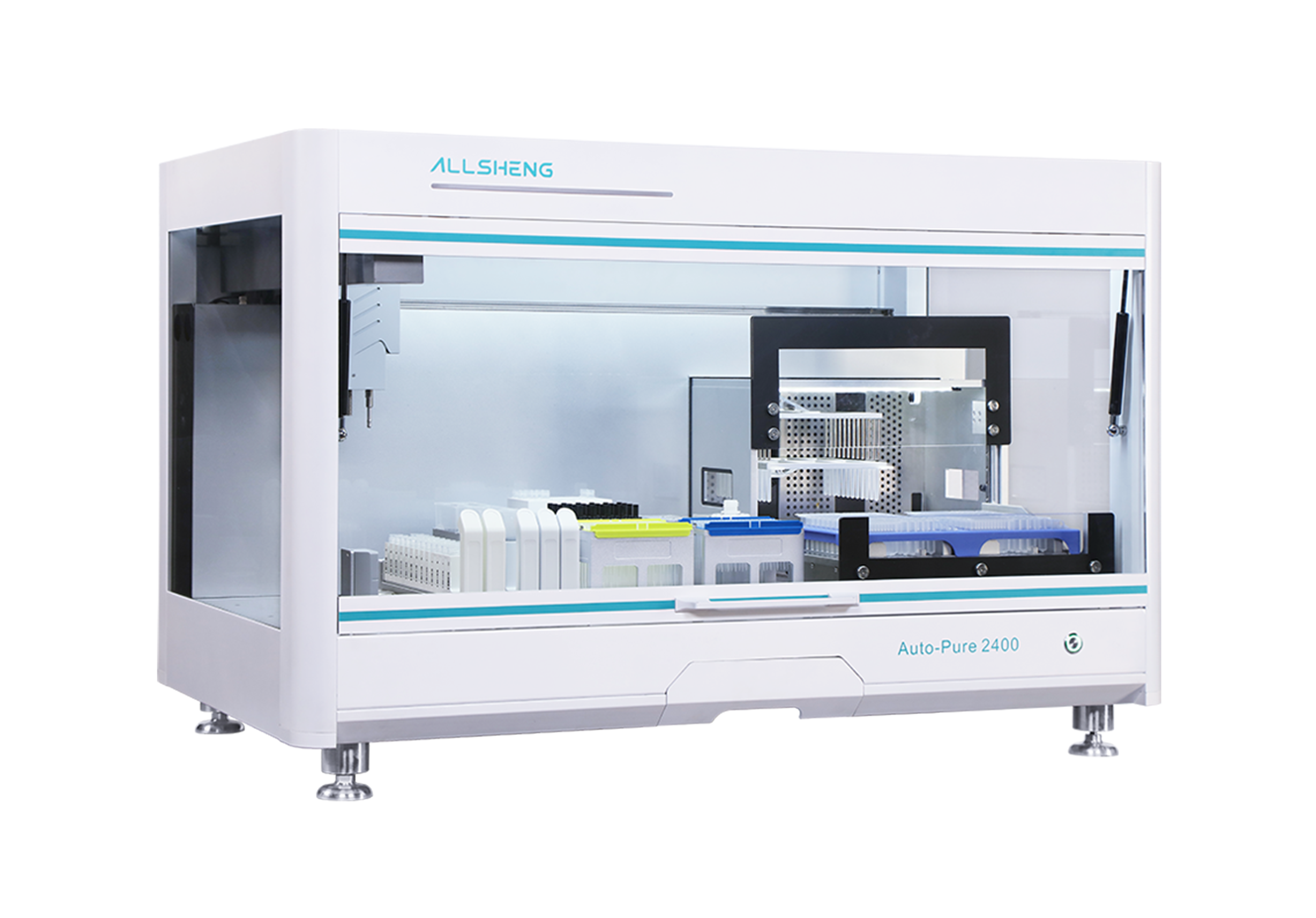

Auto-Pure 2400
Auto-Pure 2400

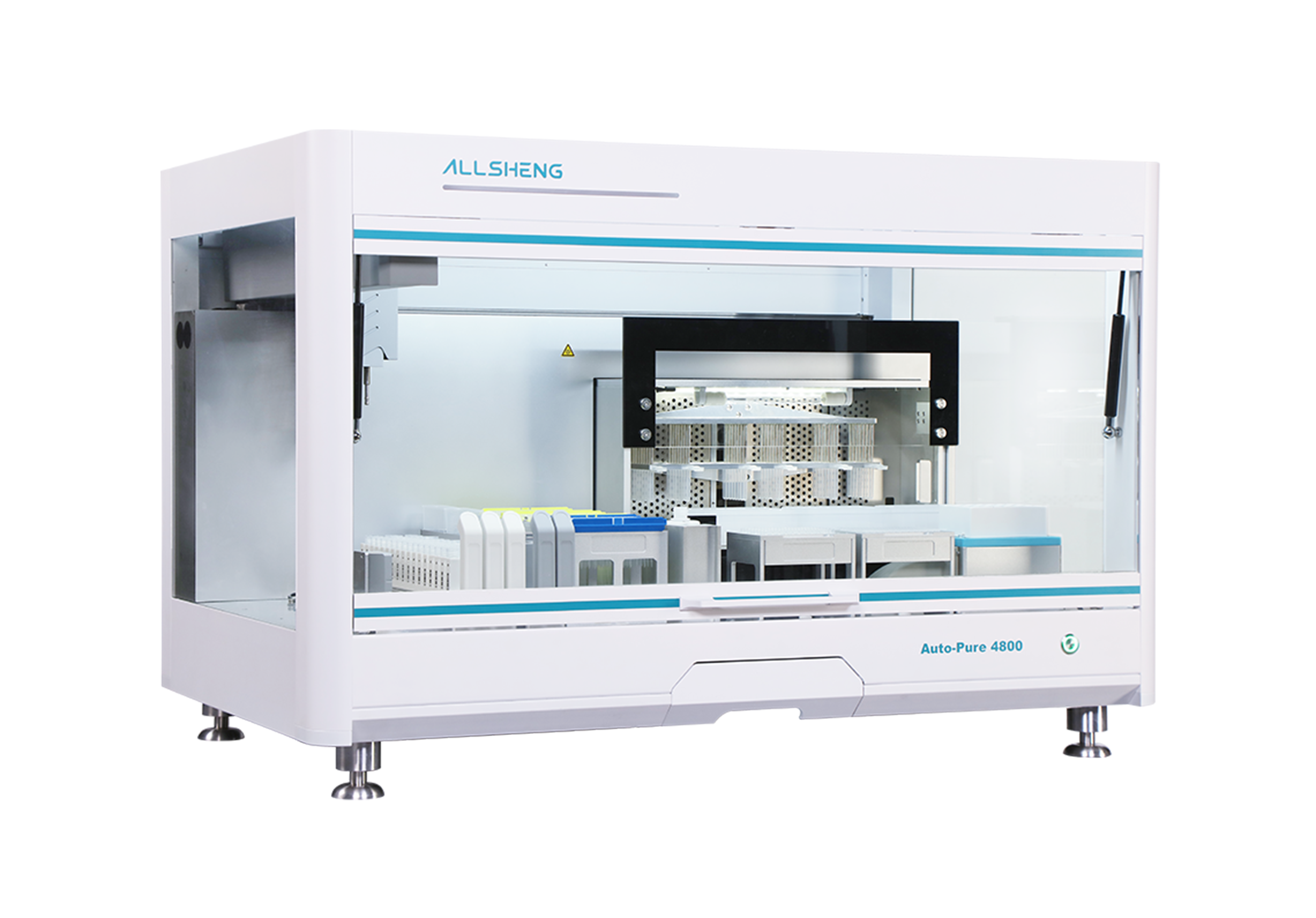

Auto-Pure 4800
