Auto-Pure 4800
  • Auto-Pure 4800
  • Auto-Pure 4800

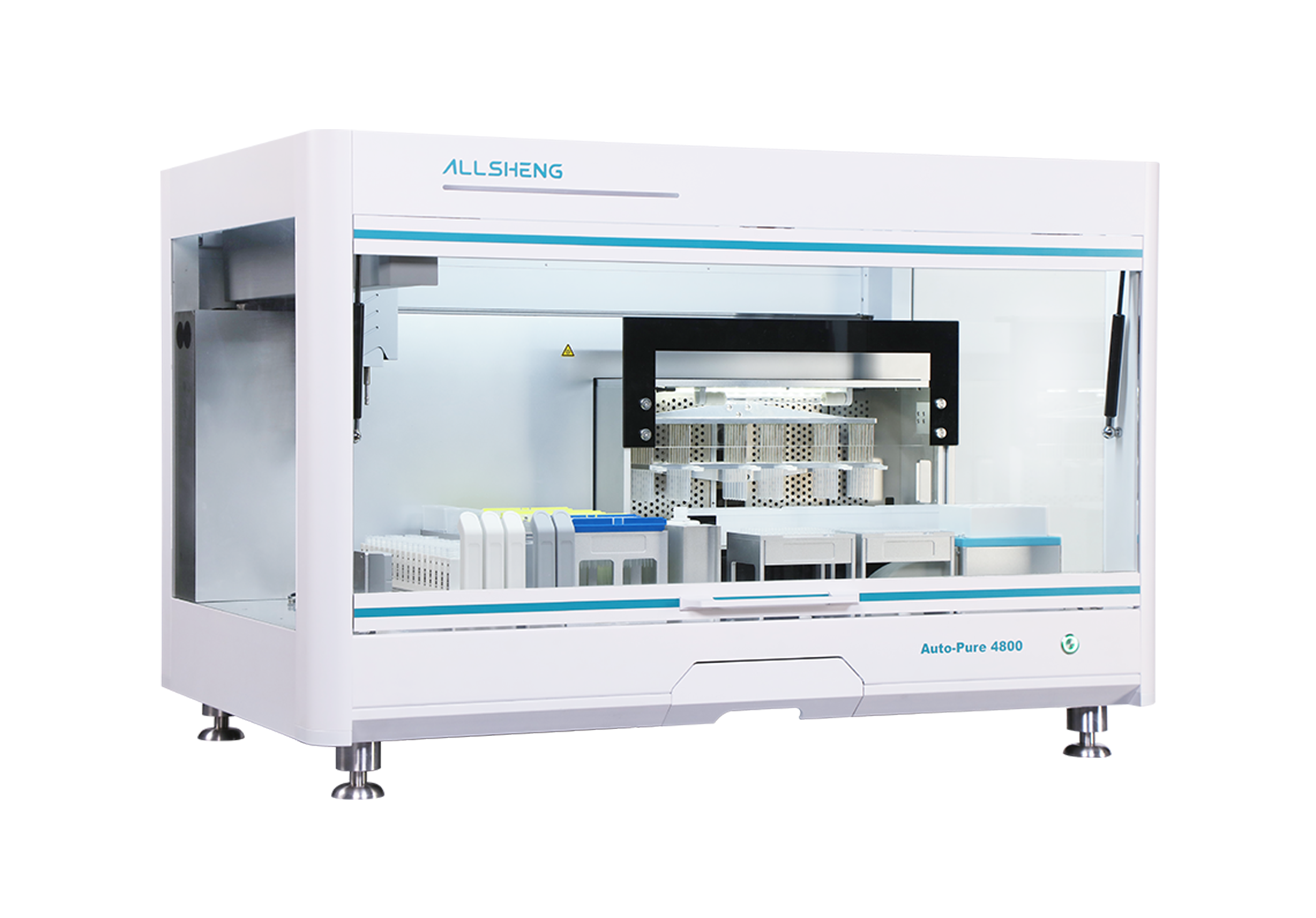

Nucleic Acid Purification System — Auto-Pure 4800

Auto-Pure 4800 automatic nucleic acid extraction and purification instrument is a high-throughput automatic nucleic acid extraction equipment. The instrument is based on the magnetic bead method to extract nucleic acid. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up are automatically completed in the workstation. One-stop operation, without manual intervention. Can extract 48×1 ml  sample system in one run.

Inquiry More
  • ALLSHENG ALLSHENG

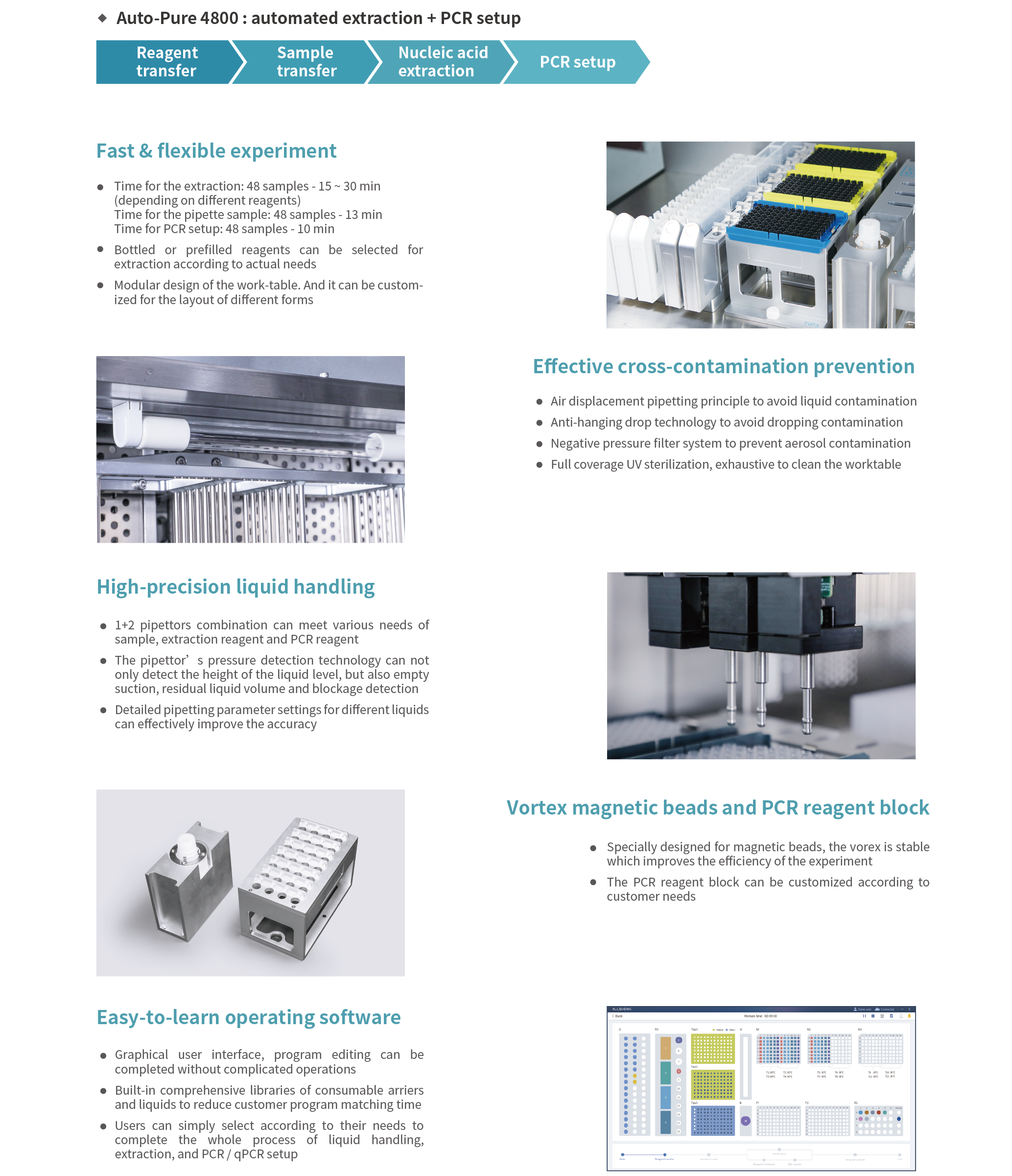

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG

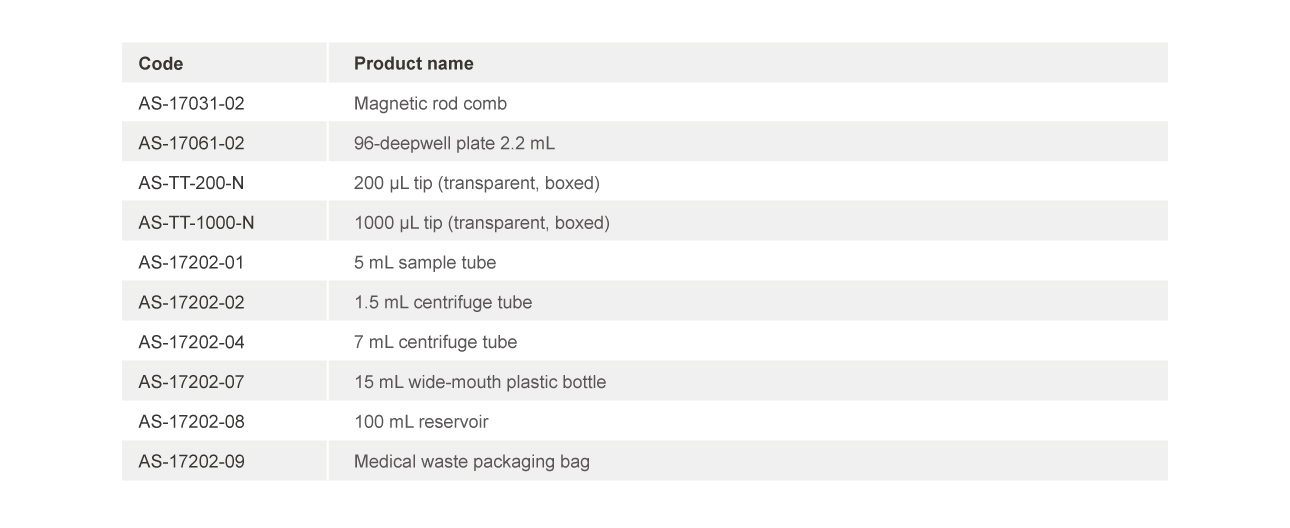

    Accessories consumables
  • ALLSHENG ALLSHENG
    Order information

Auto-Pure 4800-03英文网站.png

  • Model
    Auto-Pure 4800
  • Function
    Automatic pipette samples and reagents, extract nucleic acid and set-up PCR systems
  • Information management
    Support external USB scanner, barcode scanning function, automatic scanning function
  • Pipetting principle
    Air displacement pipetting technology
  • Pipettor
    Two 1000 μL pipettors and one 200 μL pipettor
  • Pipetting range (μL)
    1-1000 μL
  • Tips
    Allsheng tips, and other tips compatible with this instrument
  • Liquid detection
    Pressure detection: liquid level detection, tip clogging detection and residual liquid detection
  • Samples per run
    1-48
  • Extraction processing volume
    50-1000 μL
  • Extraction uniformity
    CV≤5 %
  • Single sample consumable
    Support
  • Extraction temperature control
    Elution, lysis temperature control: RT~ 120 ℃
  • Reagent cooling block
    Optional, 0 ℃~105 ℃
  • Temperature control block (Auto-Pure 4800M)
    4 ℃~105 ℃
  • UV sterilization
    Separate UV lamp: extraction area, pipetting area and waste container area
  • Filter
    Equipped with three HEPA filters
  • Instrument port
    USB port
  • Power supply
    220 V, 8 A, 50/60 Hz
  • Power
    Standby 30 W, maximum 550 W
  • Noise
    ≤60 dB
  • Size (WxDxH) mm
    1090x700x724
  • Net weight
    130 kg


  • Code
    Model
  • AS-17210-00
    Auto-Pure 4800
