Au-PCR 96
  • Au-PCR 96

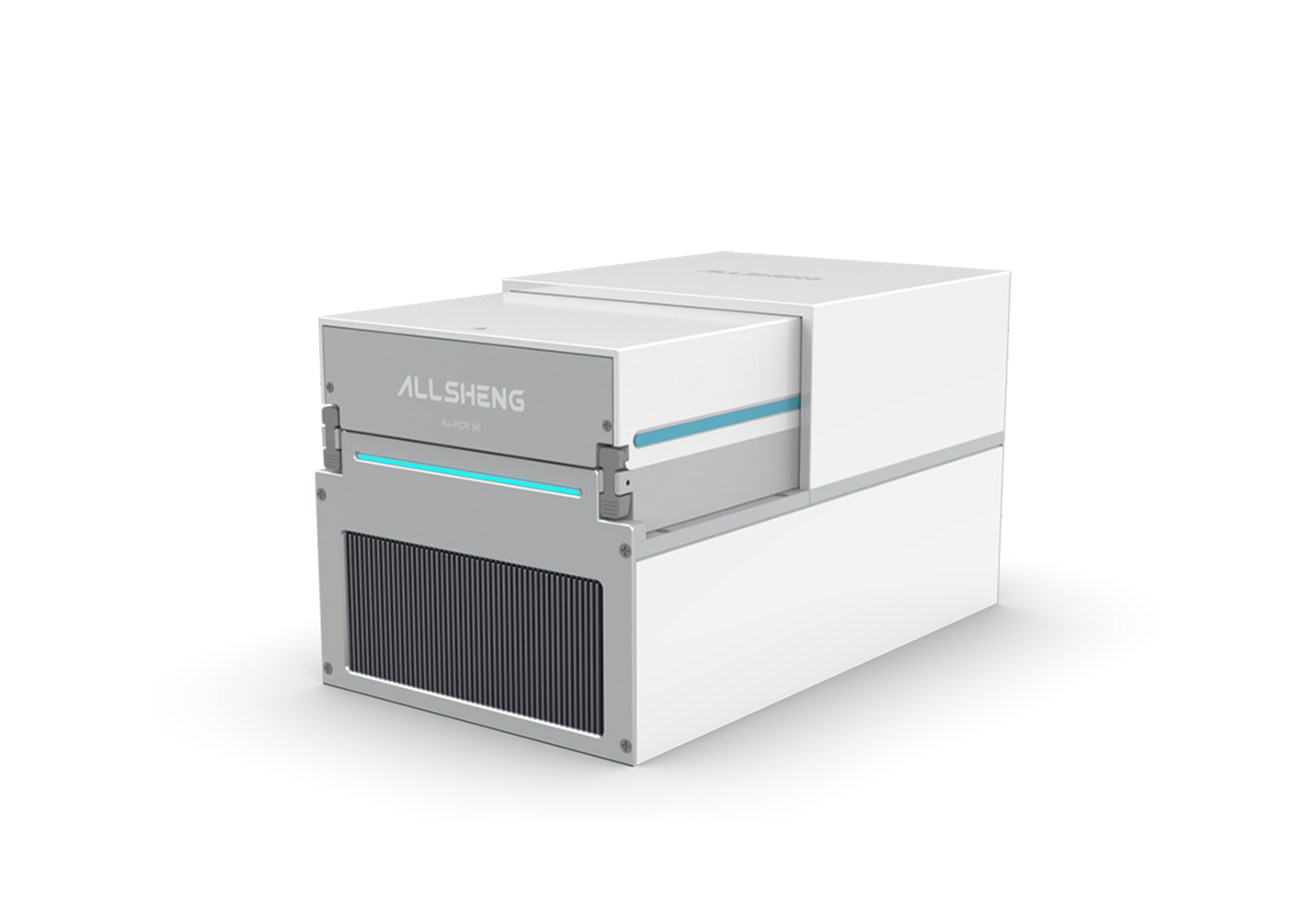

PCR for Workstation — Au-PCR 96

Au-PCR for workstation is a compact PCR cycler suitable for laboratory automation systems. Freely programmable temperature process and thermo lid temperatures, can maintain excellent heating performance even with misaligned PCR plate reagent loads. It has good temperature uniformity, precise run times, ideal for use on liquid handling workstation.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

•Use imported customized long-life Peltier block, cycle number is more than 1 million times

•Anodized aluminum blocks that retain fast thermal conductivity and corrosion resistance

•Fast heating and cooling rate, the fastest heating and cooling rate is 5 °C/s, saving experimental time

•Motorized self-adaptive thermo lid, suitable for full-skirt and half-skirt 96-well PCR plates

•Small size, linked through CAN communication port

•Automatic power-off protection, automatically execute the unfinished cycle after the power supply is restored, to ensure the safe operation of the whole process of amplification

•Support silicone thermo lid to meet a variety of experimental needs

  • Model
    Au-PCR 96
  • Applicable consumables
    96 PCR plate
  • Application scenarios
    For stand-alone PCR labs or pipetting workstations
  • Temperature range
    Thermo lid: 30 °C~120 °C; Block: 4 °C~99 °C
  • Default use Temp. of thermo lid
    110 °C
  • Average heating rate
    Block 50 °C~90 °C: ≥2 °C/s
  • Average cooling rate
    Block 90 °C~50 °C: ≥2.2 °C/s
  • Temperature accuracy
    ≤±0.3 °C
  • Block Temp. control accuracy
    ≤0.2 °C
  • Temperature uniformity
    ≤0.7 °C
  • Temp. duration accuracy
    ≤±5 s
  • Power supply
    AC100-240 V 50-60 HZ Max 800 W
  • Thermo lid clean
    The thermo lid can be flipped for easy cleaning and disinfecti
  • Heat preservation
    Infinity
  • Communication port
    CAN
  • Controlling software
    When connected to the workstation, it is controlled by the workstation; it can be controlled by the APP software when it is used alone
  • Weight
    12 kg
  • Size (WxDxH) mm
    162×277×165 mm
  • Code
    Description
  • AS-24010-00
    Au-PCR 96, with CAN communication, AC100-240 V/AC 800 W
  • AS-24011-01
    Au-PCR 96 power supply parts
