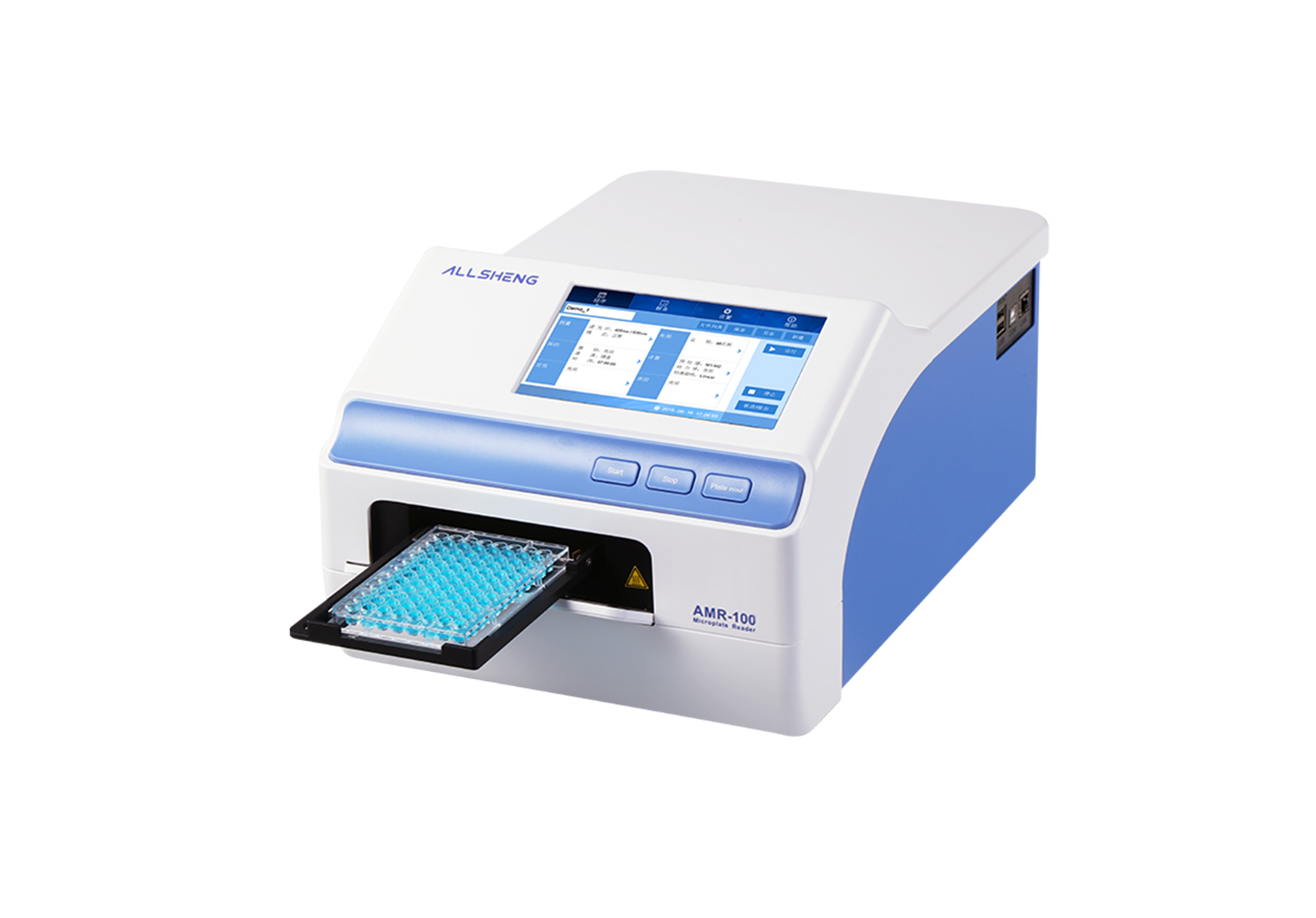

Microplate Reader — AMR-100

AMR-100 is a high-quality light absorption microplate reader based on a filter, with a wavelength range of 340 nm~750 nm, suitable for scientific research and clinical applications. 7-inch touch screen color LCD display, no keyboard required, easy to use. Data and programs can be saved in the instrument or exported via a USB stick. The plate reading speed is fast, which can realize fast measurement, and provide measurement results with high accuracy and good reproducibility.

Inquiry More


Model

AMR-100
Display

7 inch touch screen
Light source

Quartz-halogen lamp 6 V 10 W
Wavelength range

340 nm~750 nm
Filter

8-position filter wheel, standard 4 filters: 405nm, 450nm, 492nm, 630nm, other filters are optional
Read-out range

0~4.000Abs
Linearity

[0.000~3.000 Abs] R²≥0.995
Resolution

0.001Abs
Wavelength accuracy

≤±2 nm
Absorbance repeatability

[0,3 Abs) CV≤0.3 % [3,4 Abs) CV≤1 %
Absorbance stability

≤0.005Abs [0,3Abs) ≤2.0% [3,4Abs)
Absorbance accuracy

≤±0.005Abs [0,2Abs) ≤±0.01Abs [2,3Abs) ≤±1.5% [3,4Abs)
Sensitivity/detector

≥0.01 A/photodiode
Test speed

6 s/96-well, fast measurement mode; single wavelength <15 s/96 well, dual wavelengths <28 s/96 well (normal mode)
User interface

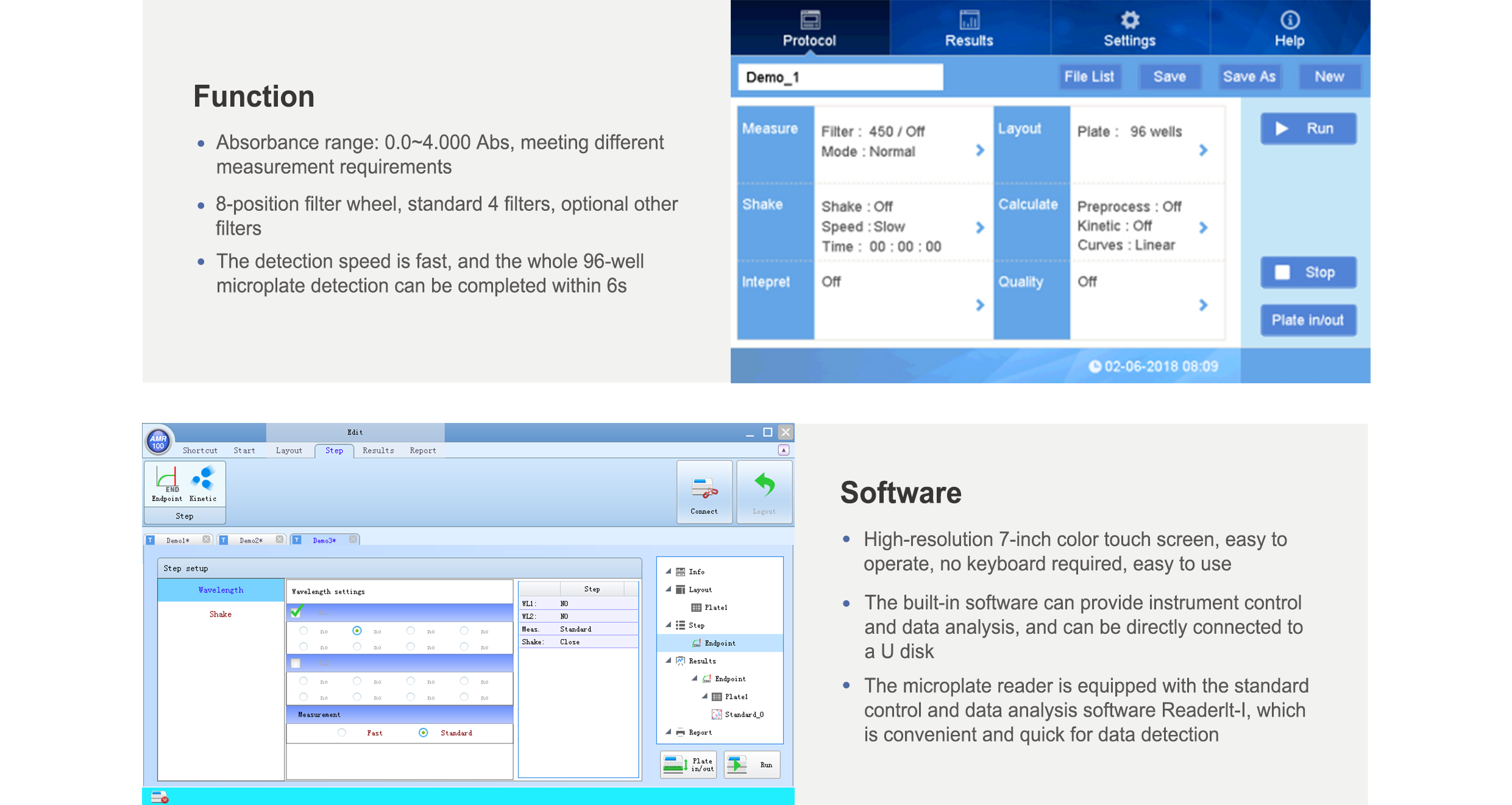

Built-in software, touch screen input, external mouse
Storage

1000 test records
Port

3 USB ports, for PC, printer and USB-disk
Power supply

AC100-240 V，50-60 Hz，2 A
Dimension (W×D×H)

295×440×225 mm
Weight (kg)

10

Code

Description
AS-16050-00

AMR-100 microplate reader
AS-16051-01

Optical filter 340nm
AS-16051-02

Optical filter 380nm
AS-16051-03

Optical filter 405nm
AS-16051-04

Optical filter 415nm
AS-16051-05

Optical filter 450nm
AS-16051-06

Optical filter 492nm
AS-16051-07

Optical filter 540nm
AS-16051-08

Optical filter 570nm
AS-16051-09

Optical filter 578nm
AS-16051-10

Optical filter 590nm
AS-16051-11

Optical filter 595nm
AS-16051-12

Optical filter 630nm
AS-16051-13

Optical filter 650nm
AS-16051-14

Optical filter 690nm
AS-16051-15

Optical filter 470nm
AS-16051-16

Optical filter 490nm
AS-16051-17

Optical filter 510nm
AS-16051-18

Optical filter 520nm
AS-16051-19

Optical filter 532nm
AS-16051-20

Optical filter 546nm
AS-16051-21

Optical filter 560nm
AS-16051-22

Optical filter 562nm
AS-16051-23

Optical filter 600nm
AS-16051-24

Optical filter 620nm
AS-16051-25

Optical filter 646nm
AS-16051-26

Optical filter 663nm
AS-16051-27

Optical filter 700nm
AS-16051-28

Optical filter 750nm
AS-16051-50

Replacement Lamp
AS-16051-51

Printer
AS-16051-52

Printer Paper
AS-16051-53

ABS optical performance validation board
AS-16051-54

Readerlt-I software
