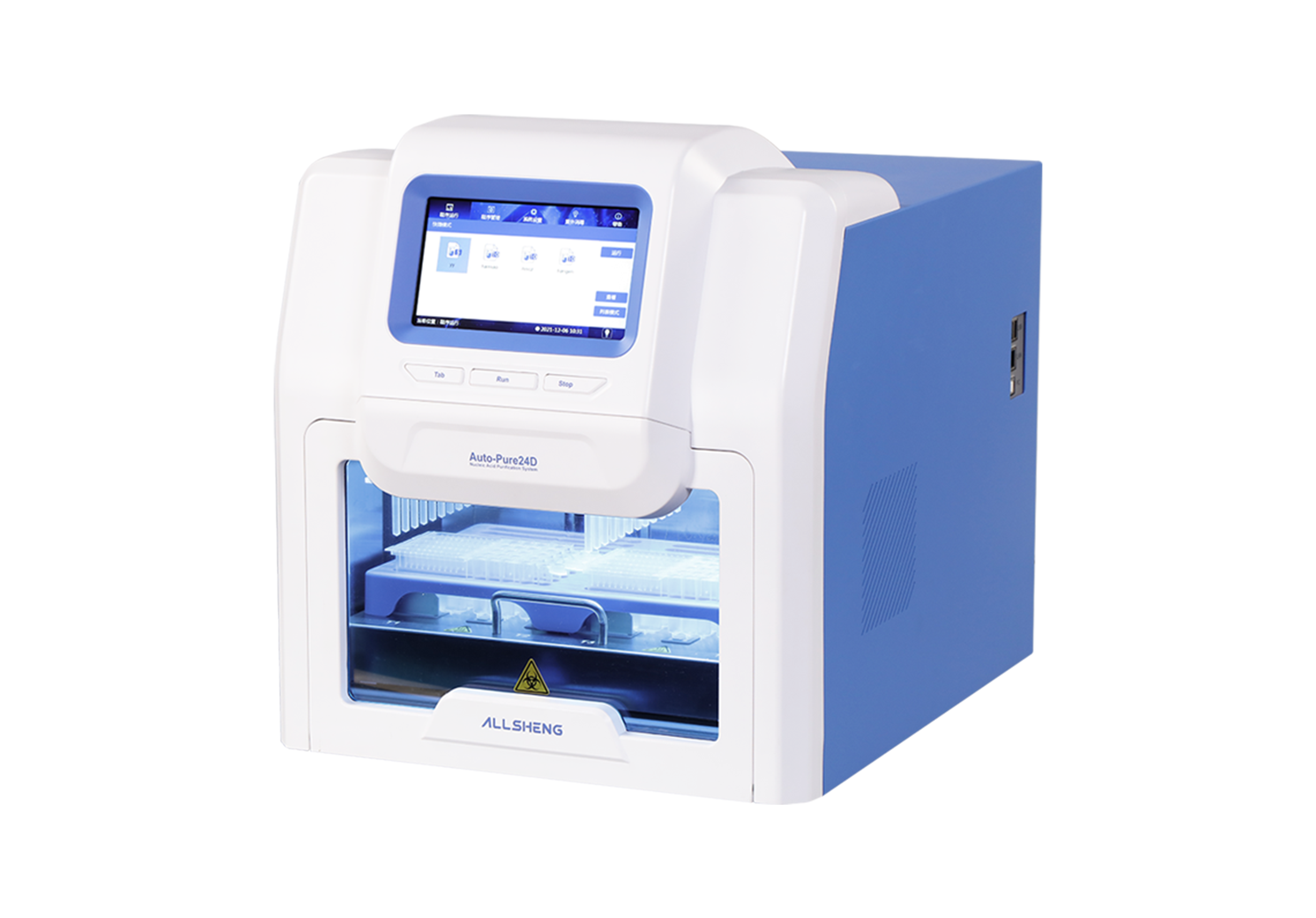

Nucleic Acid Purification System — Auto-Pure 24D

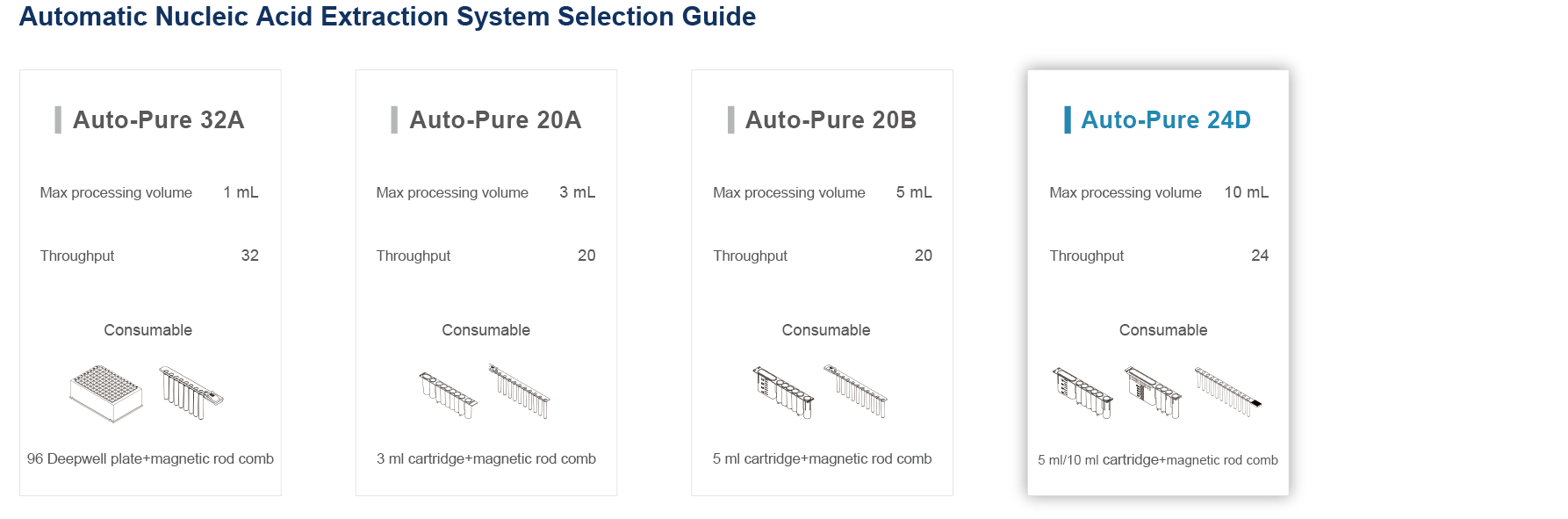

Auto-Pure 20 series nucleic acid purification system has further improved the sample processing capacity based on 32A. The maximum processing volume of 20A is 3 mL; and the maximum processing volume of 20B/24D is 5 mL and 10 mL, combined with the patented left and right mixing method and reagent strips. In addition, the single-strip design of the kit can effectively avoid the waste of the kit, which is more suitable for customers with a small amount of samples.

Inquiry More


•Large sample volume processing: 20B maximum processing volume 5 mL, 24D maximum processing volume 10 mL, to meet a variety of applications

•24D has two maximum processing volumes, suitable for 5 mL and 10 mL consumables

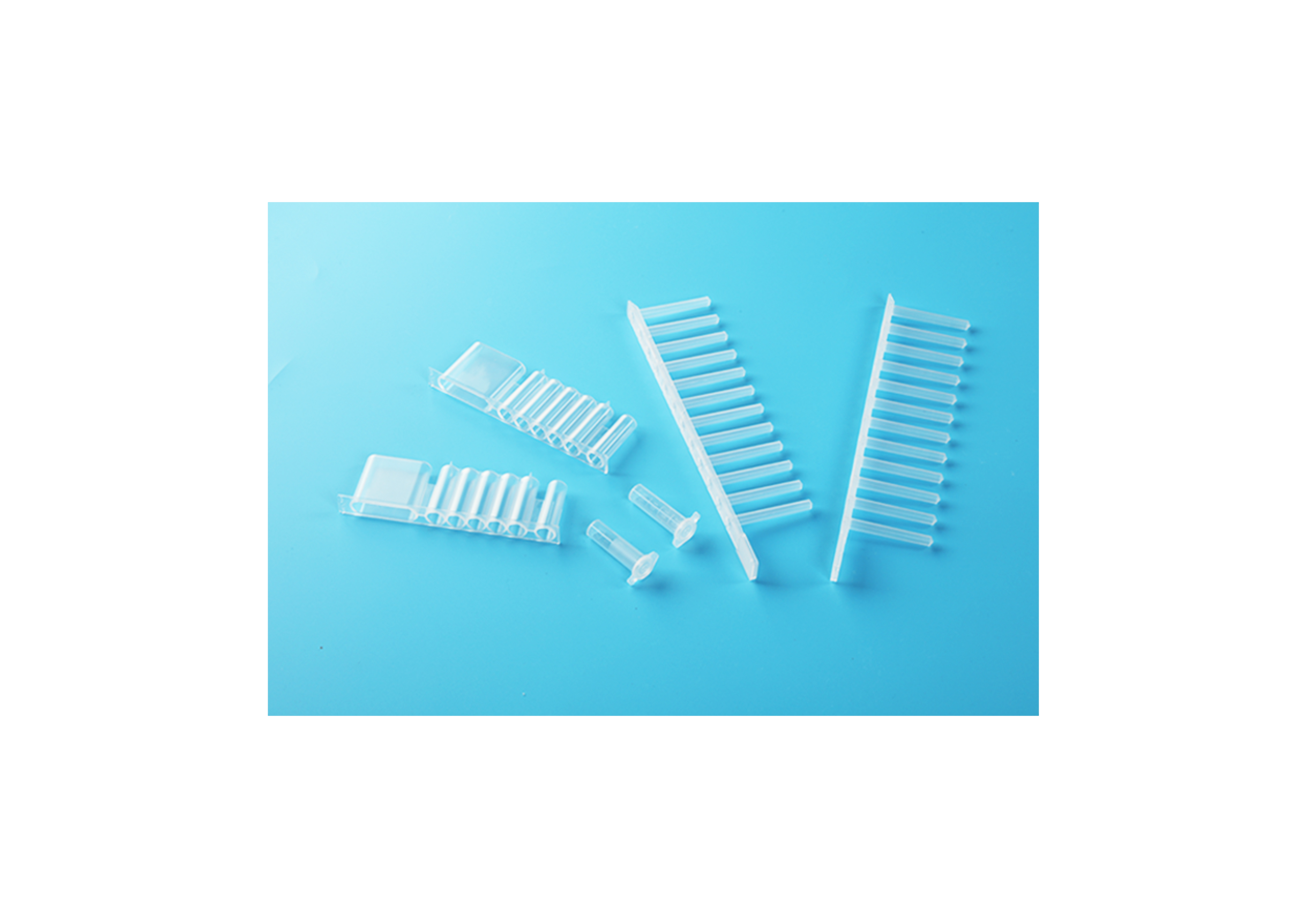

•Patented designed kits can be individually packaged for nucleic acid extraction and purification from a single sample

•The patented designed nucleic acid sample left and right mixing method is especially suitable for cfDNA extraction, nucleic acid sample library construction, blood nucleic acid screening, and nucleic acid hypersensitivity detection.

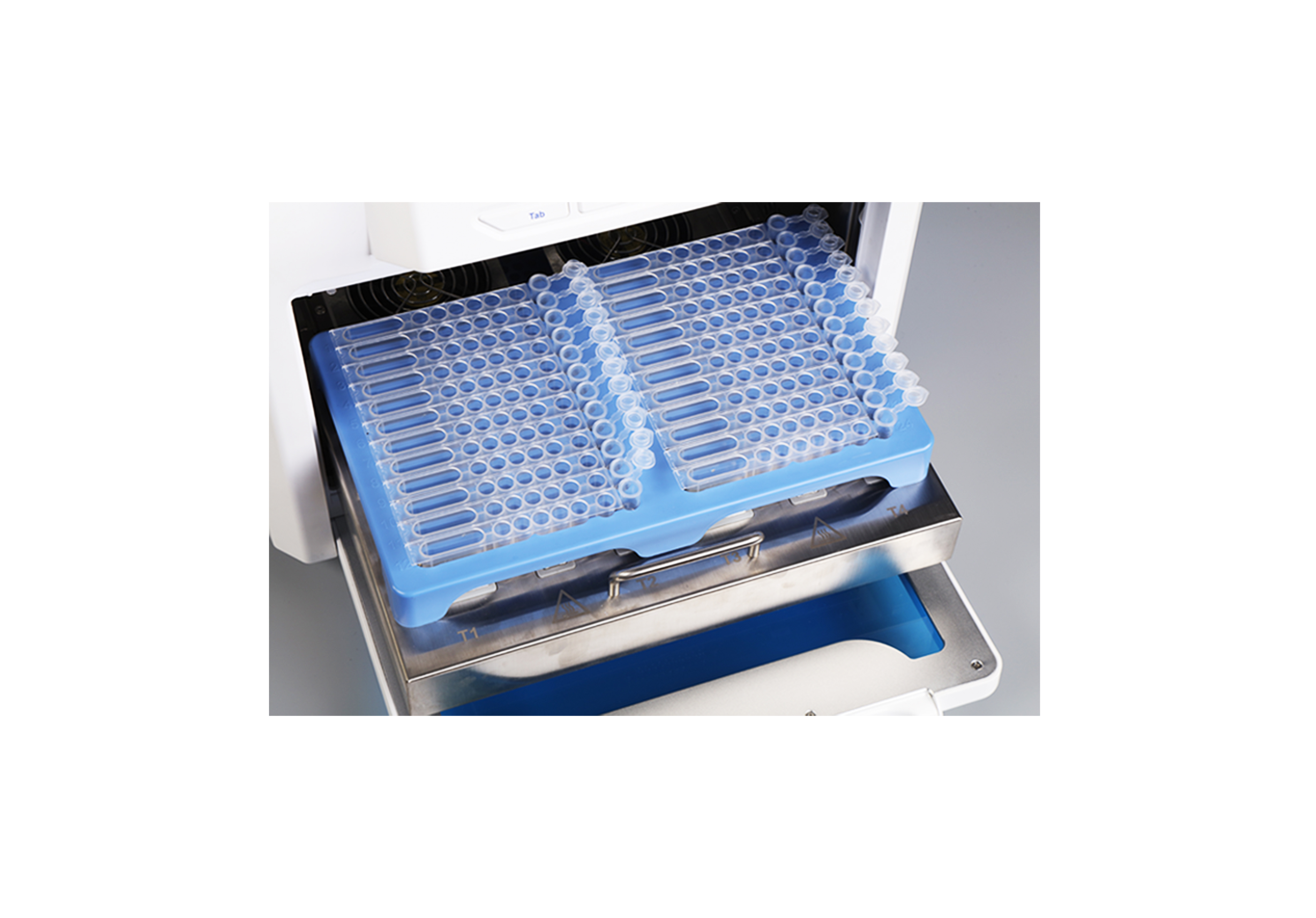

•Drawer design for easy kit placement

•Open instrument parameter settings, can set freely: mixing speed, magnetic absorption method, heating method and other functions

•24D operation time, 15-30 min/time

Model

Auto-Pure 24D
Throughput

1~24
Process volume

50~10000 µL/50~5000 µL
Consumable

5 mL cartridge+magnetic rod comb/10 mL cartridge+magnetic rod comb
Principle/working mode

Magnetic bead method, magnetic rod method/up and down mixing, left and right mixing
Purification accuracy

100 copy sample positive rate>95 %
Stability

CV<5 %
Collection efficiency

>95 %
Heating for lysis tube

Ambient temperature~120 °C
Heating for elution tube

Ambient temperature~120 °C
Operation

7-inch touch screen, 3 shortcut keys, external mouse
Internal program

Preset 8 programs, max store 100 programs
Protocol management

Create, edit, delete, protocol mode
Extension interface

4 standard USB port, Ethernet port, wifi, built-in SD card
Lighting

Yes
Pollution control

UV sterilization
Exhaust

Fan
Power supply

450 W
Dimension (W×D×H)

400×520×450 mm
Weight

30 kg
