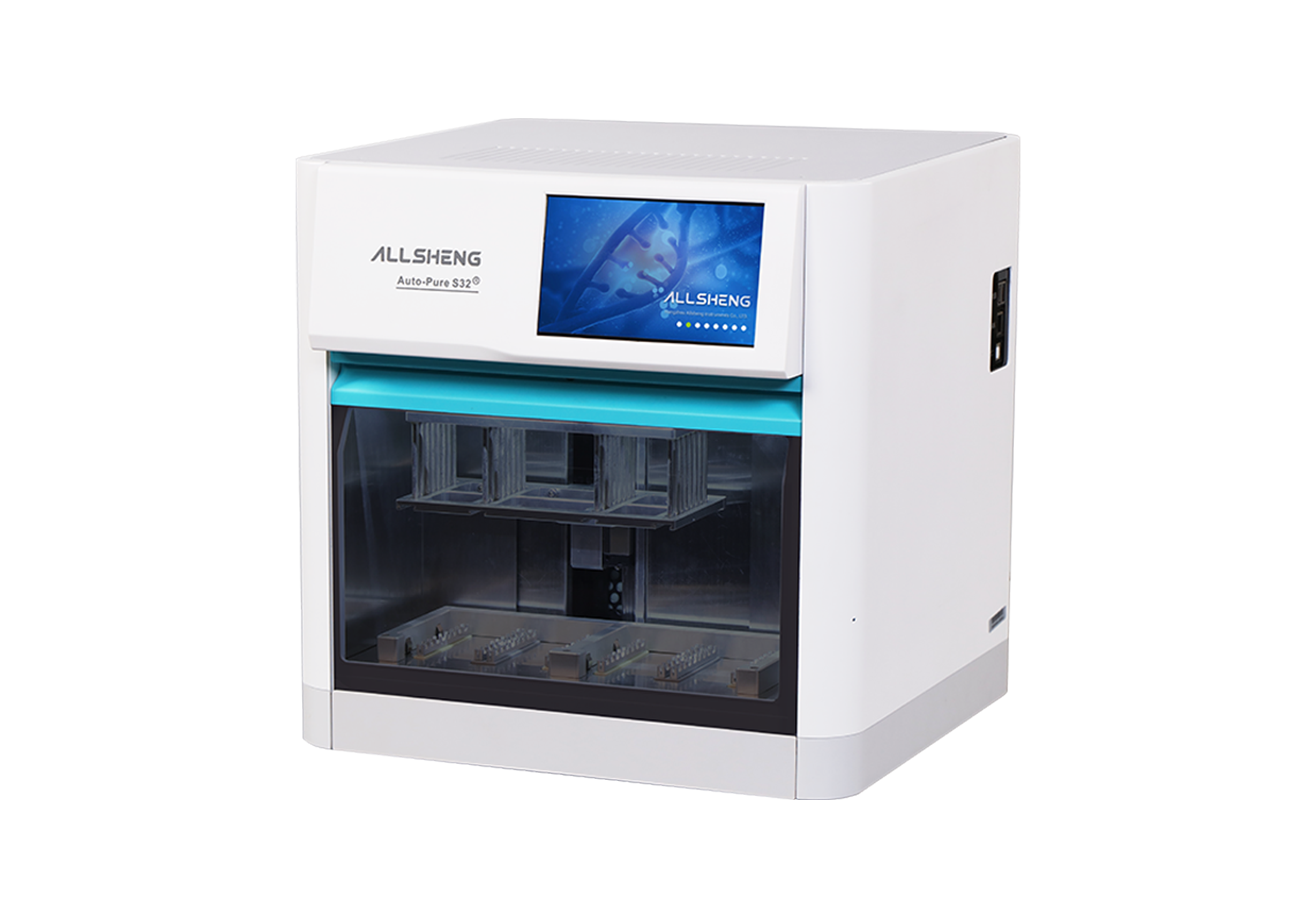

Nucleic Acid Purification System — Auto-Pure S32

Auto-Pure S32 automatic nucleic acid purification system is a device for nucleic acid extraction and purification based on magnetic bead method. It can be used for fully automatic extraction and purification of DNA, RNA, and protein. Through the adsorption, transfer and release of magnetic beads by magnetic rods and magnetic rod comb, the transfer of magnetic beads/samples is realized, and the automatic extraction and purification operation is completed. The operation is automated, fast and simple. Using special kits or 96-well plates, 1 to 32 samples can be processed at the same time. With different types of magnetic bead nucleic acid extraction reagents, rapid extraction of animal, plant tissue, blood and other body fluid samples can be achieved. It is mainly used for the extraction and purification of nucleic acid from human samples.

Inquiry More

•Humanized Operating System

Chinese and English interface operation, touch screen operation, and external mouse, easy to use

Built-in lighting LED for real-time observation of operating conditions

Short operation time, with different reagents, the general extraction time is 10~60 minutes/time

Support external scanner, automatically identify program/sample and other information after scanning

•Open Design, Flexible Extraction

1-32×1 mL samples can be extracted in one run

Realize lysis heating and elution heating

1-10 gears of shaking and mixing can be set flexibly, and the methods are more diverse

•Stable Operation, Safe and Reliable

The instrument runs quietly and the whole machine has no vibration

Automatic reagents and disposable consumables reduce operator exposure to harmful reagents

Select high-quality materials and processes, low loss of magnetic beads, high yield

Built-in UV sterilization function reduces the risk of contamination

•Intelligent and Diverse Network System

Network control----Extensible Ethernet remote control, Wireless WiFi function

APP software ---- can expand the Android tablet computer, mobile phone monitoring system

Expanded functions----IOT to achieve efficient background management

Model

Auto-Pure S32
Principle

Magnetic bead method
Throughput

1~32
Plate type

96 deepwell plate
Process volume /μL

30~1000
Stability

CV≤5 %
Heating for lysis tube

RT.~120℃
Heating for elution tube

RT.~120℃
Heating time

RT.~120 ℃≤4 minutes
Cooling time

100 ℃~40 ℃ time≤10 minutes (RT.25 ℃)
Temperature precision

±0.5 ℃
Temperature uniformity

At 100 °C, ±1 °C
Shake mixing

1-10 gear can be set
Operation interface

7 inch color large touch screen
Internal procedure

Up to 500 programs can be stored
Instrument interface

2 USB (dual A type), 1 USB (B type), 1 Ethernet port
Network

Reserved 4G network
Barcode scanning

Automatically identify program/sample and other information after scanning
Sterilization

UV sterilization
Purification filter

Equipped with a purification and filtration system to effectively reduce the risk of cross-contamination such as aerosols
Power supply

AC110-240 V, 50 Hz/60 Hz, 350W
Dimension (W×D×H) mm

417×410×426
Weight (kg)

20

Code

Description
AS-17180-00

Auto-Pure S32 nucleic acid purification system
AS-17061-02

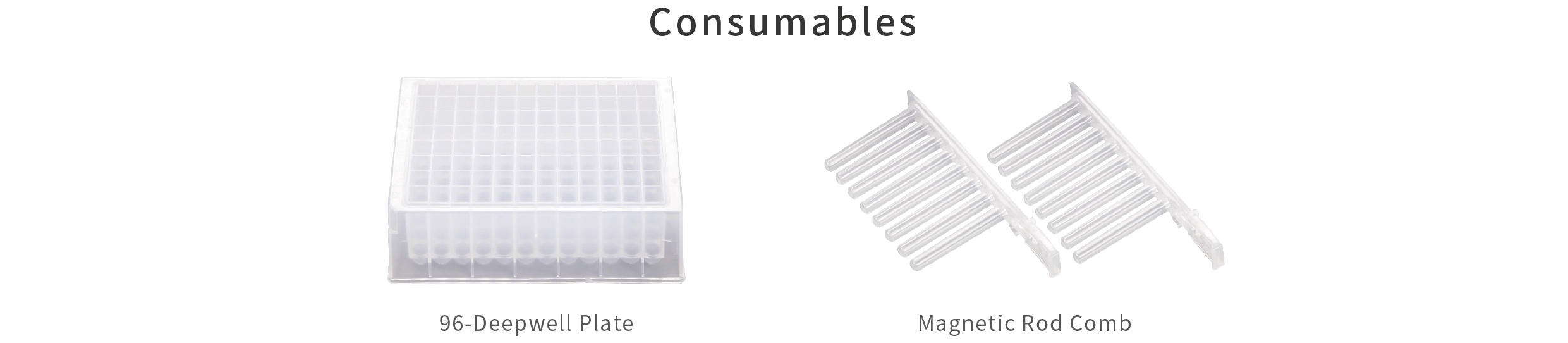

96-deepwell plate for Auto-Pure 96 / Mini / S32
AS-17031-02

Magnetic rod's tip for Auto-Pure S32 / 32A / 16A / Mini
