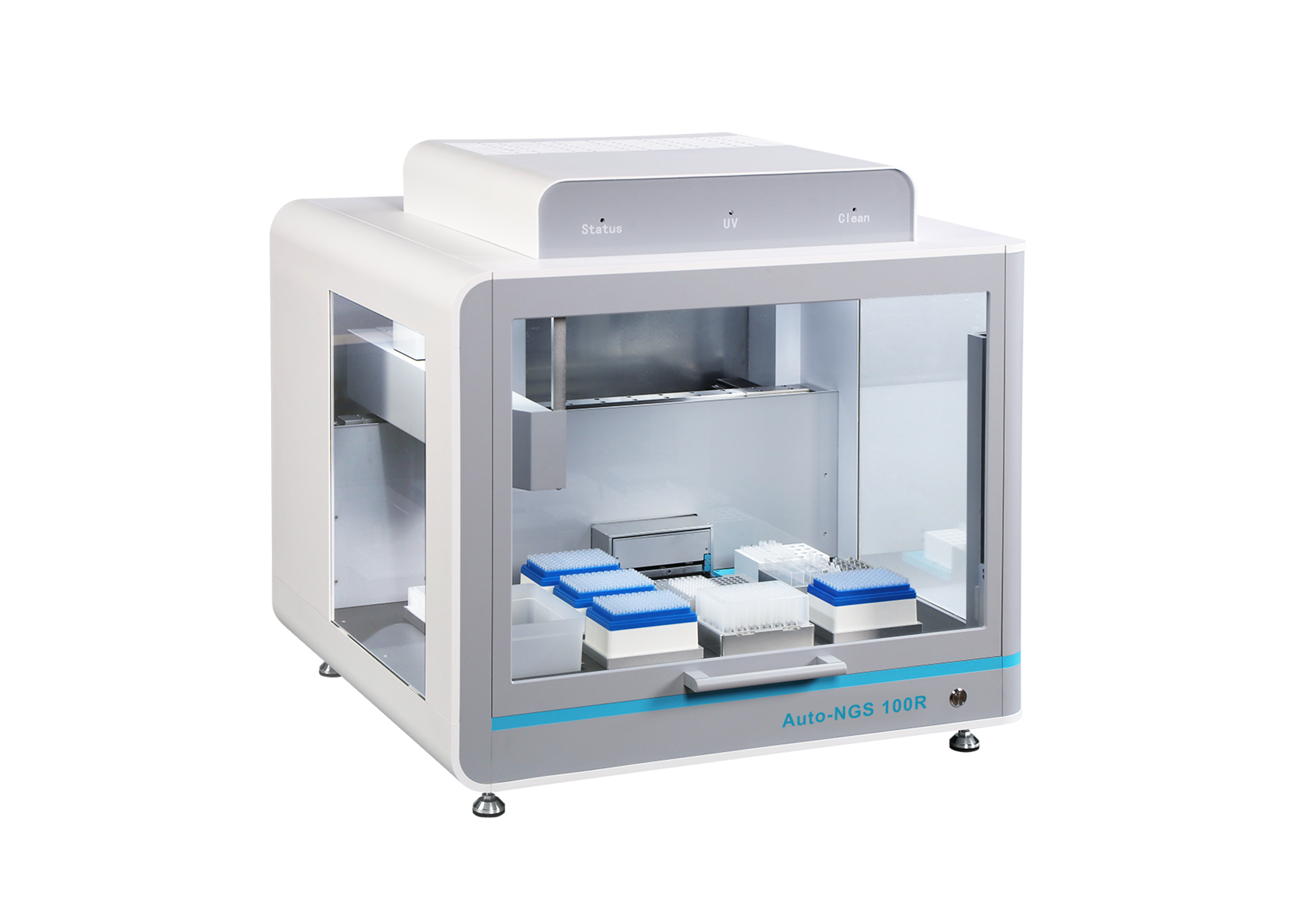

Automated NGS Library Preparation Workstation — Auto-NGS 100R

NGS sequencing is the mainstream gene sequencing technology, and has gradually replaced the first-generation sequencing technology to become the mainstream of the market; it can be widely used in prenatal testing, disease screening, disease diagnosis, etc.
Auto-NGS 100R can construct 24 sample libraries in one run. Based on the direct loading of nucleic acid samples, fully automatic library preparation can be realized: fragmentation, end repair, adapter connection, PCR amplification, library mixing, etc.

Inquiry More


Model

Auto-NGS 100R
Throughput

1-24
Tiles number

11
Pipettor

200 μL; 8-channel (can be used as a single channel, including PLLD / CLLD)
Pipettor

Minimum detection volume: 20 μL
Pipetting range

1~200 μL
Pipetting precision (CV)

1 μL: ≤5 % 20 μL: ≤2 % 100 μL: ≤1 % 200 μL: ≤1 %
Pipetting accuracy (A)

1 μL: ±8 % 20 μL: ±2 % 100 μL: ±1 % 200 μL: ±1 %
Temperature control block

Including 1 temperature control block
Temperature control block

Temperature control range: 4~105 °C
Temperature control block

Temperature control accuracy: ≤1 °C
Temperature control block

Temperature control uniformity: ≤1 °C @55 °C
Thermal cycling block

Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycling block

Uniformity: ≤0.7 °C
Thermal cycling block

Accuracy: ≤±0.3 °C
Magnetic plate

Lift type 96-well annular magnetic plate
UV sterilization

Equipped with UV sterilization lamp, HEPA device
Instrument port

USB port
Information management

External scanner for entering sample / reagent information
Information management

Expandable LIS system connection
Information management

Expandable cloud database connection
Operating environment

Temperature requirement: 20±5 °C Relative humidity: ≤80 %
Power supply

100~240 V, 50 / 60 Hz, rated power 1200 W

Code

Description
AS-27030-00

Auto-NGS 100R automated NGS library preparation workstation
AS-27021-01

TIP off box (recommended to store less than 700 pic)
AS-27021-02

Standard tray (Standard height plate for 200 μL SBS Tips consumables)
AS-27021-03

Heightened tray (Higher than the Standard tray for 200 μL SBS Tips consumables)
AS-27021-04

PCR tube holder ( 8-strip PCR tube, non-skirted 96-well PCR plate)
AS-27021-05

Reagent rack (place 60 mL reservoir and 12×2 mL / 1.5 mL tubes)
AS-27021-06

Au-Magnet 100 magnetic plate for workstation (96 deepwell plate), 24 V DC, 10 W, with CAN
AS-27021-07

Au-Magnet 200 magnetic plate for workstation (96 PCR plate), 24 V DC, 10 W, with CAN
AS-27021-08

Au-Cooler dry bath incubator for workstation (heating and cooling type), 24 V DC, 160 W, with CAN
