Nano-300
  • Nano-300

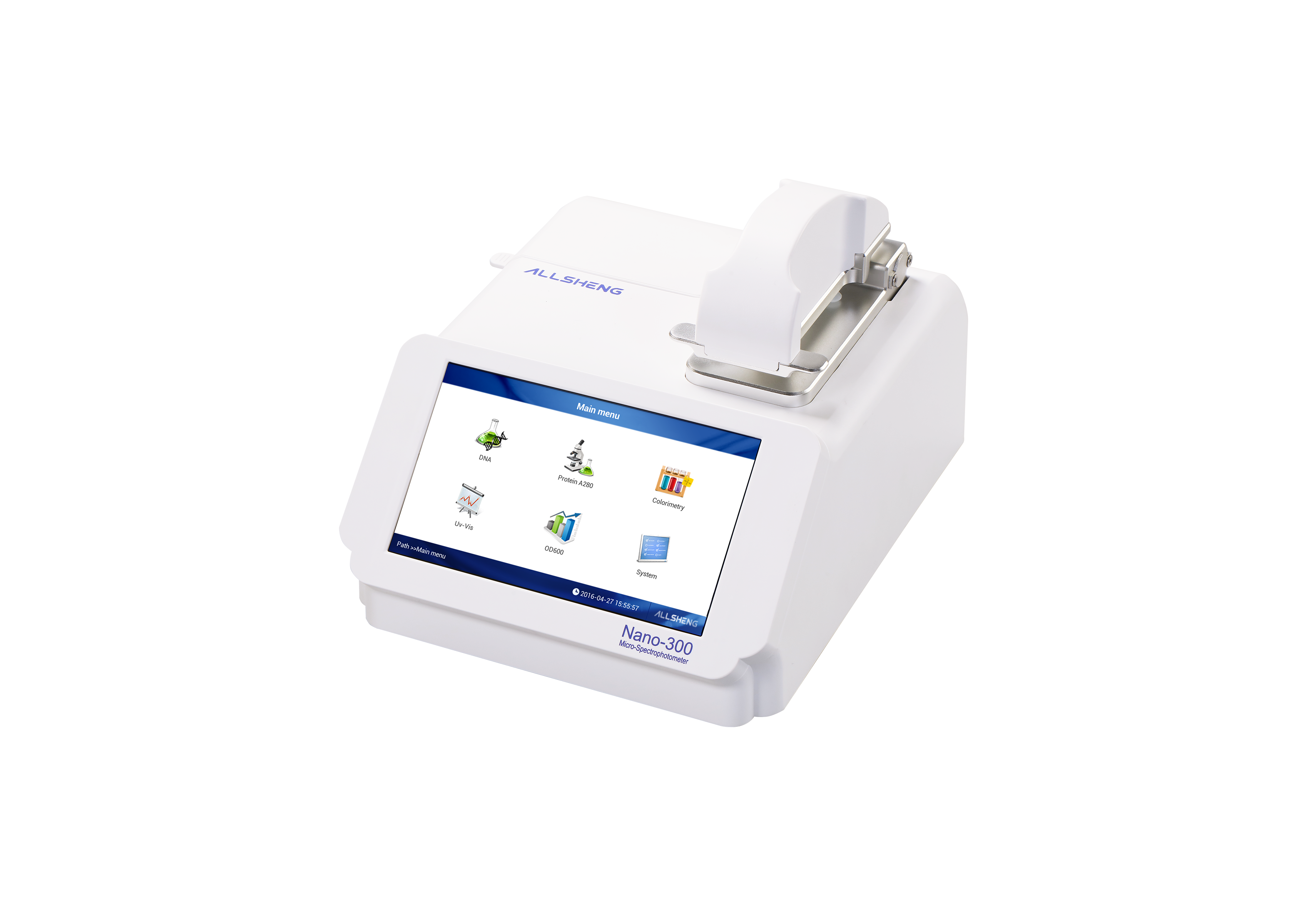

Micro-Spectrophotometer — Nano-300

Nano-300 is a perfect full-spectrum, UV-Vis micro-spectrophotometer based on Nano-100 with full range of wavelength (200-800nm). Not only can it quickly and accurately detect nucleic acids, proteins and cell solutions with only 2 μl of sample like Nano-100, but it is also equipped with a cuvette mode to detect the concentration of bacteria and other culture solutions, and then determine the growth of bacteria. Nano-300 is added a new function of bacterium cell concentration test (OD600). Nano-300 uses 7-inch touch screen and is integrated with Android system, which do not need to connect to a computer. It can be efficiently and conveniently applied to various fields of life science, and has become a routine configuration instrument in many laboratories.

  • ALLSHENG ALLSHENG

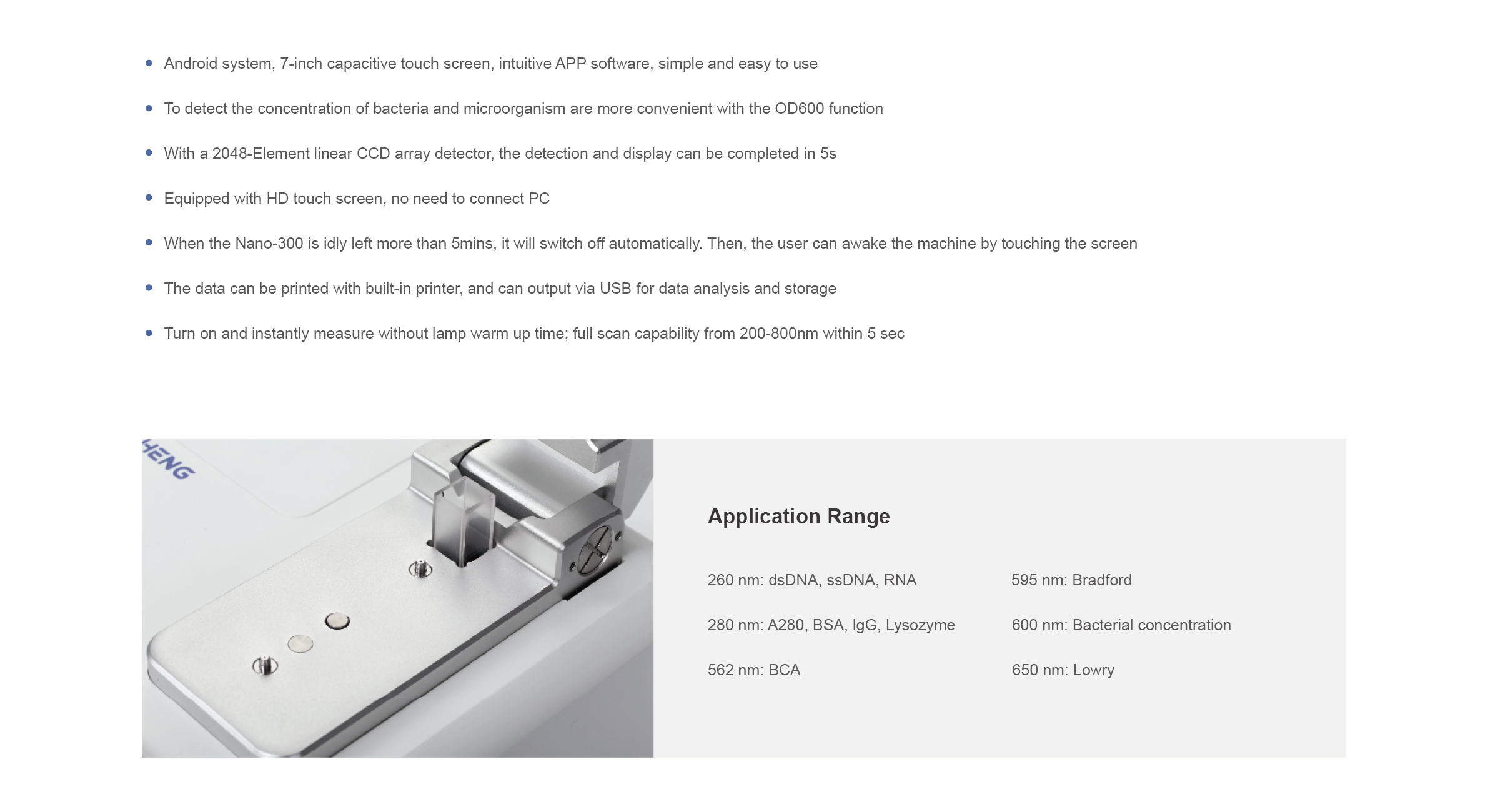

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


  • Model
    Nano-300
  • Wavelength range
    200-800 nm
  • Minimum sample size
    0.5-2.0 μl
  • Path length
    0.2mm 1.0mm
  • Light source
    Xenon flash lamp
  • Detector type
    2048-linear CCD array
  • Wavelength accuracy
    1 nm
  • Spectral resolution
    ≤3 nm (FWHM at Hg546 nm)
  • Absorbance precision
    0.003Abs
  • Absorbance accuracy
    1 % (7.332Abs at 260 nm)
  • Absorbance range
    0.04 - 90A
  • Detection range
    2~4500 ng/μl (dsDNA)
  • Measurement time
    <5 S
  • Data output
    USB
  • Sample pedestal material
    Aluminum alloy and Quartz fiber
  • Operating voltage
    DC 24V 2A
  • Operating power
    25 W
  • Standby power
    5 W
  • Dimension (W×D×H) mm
    210×268×181
  • Weight
    2.8 kg
  • Software compatibility
    Android system
  • OD600nm measurement
  • Light source
    LED
  • Wavelength range
    600±8 nm
  • Abosorbance range
    0-4 A
  • Code
    Description
  • AS-11020-00
    Nano-300 micro-spectrophotometer, DC24V 5W
  • AS-11021-01
    Cuvette for Nano-300, Nano-400A and Nano-500
