TDH-500
  • TDH-500
  • TDH-500

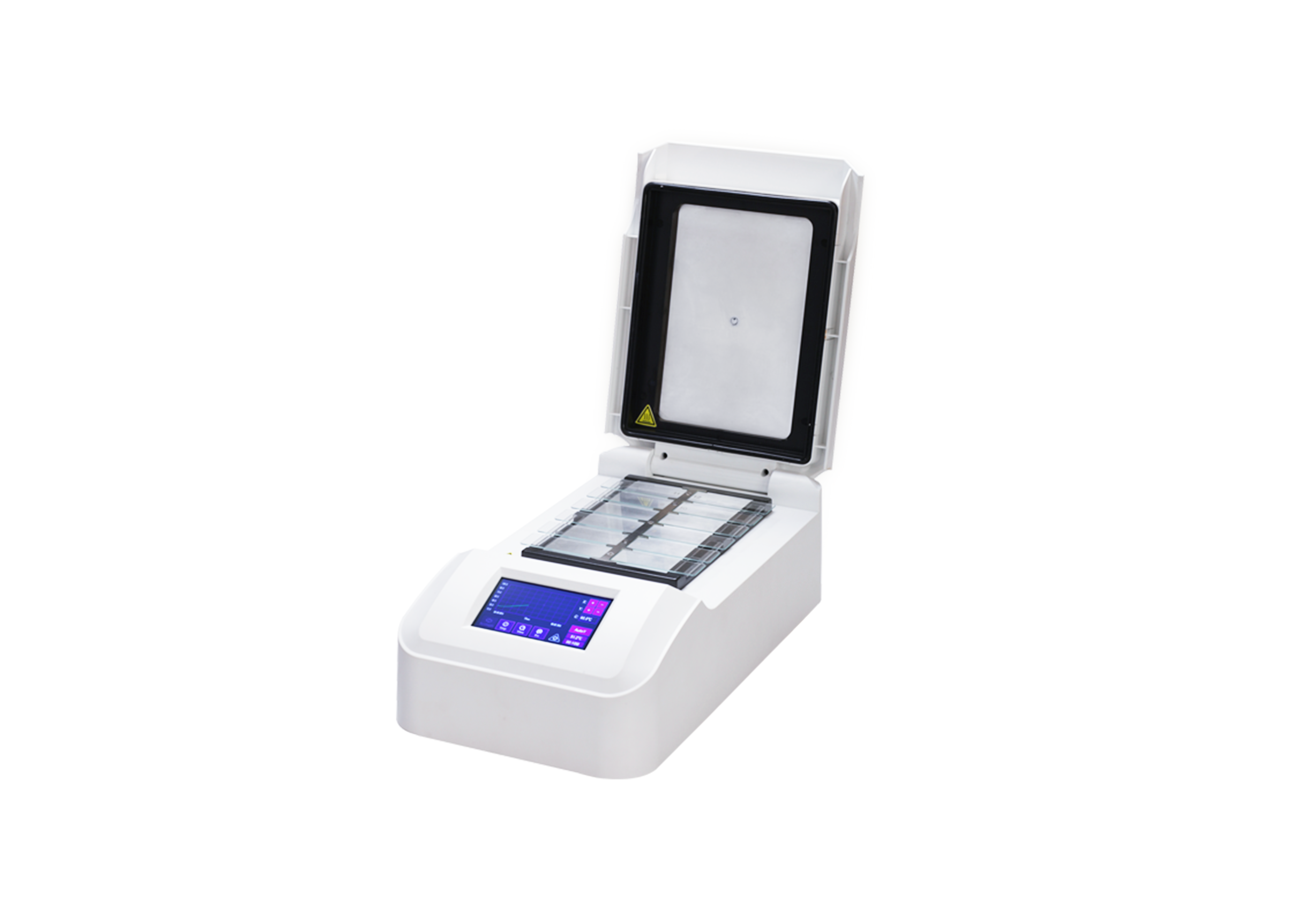

Hybridization System — TDH-500

Programmable system and humidifying that automates the steps in a slide-based FISH procedure, and provides walkaway convenience for clinical and research personnel. Up to 12 slides can be easily be added or removed with one hand. Two-side heating of slides that allows achieving exact correspondence of the set and actual temperature and maintaining uniform temperature across all slide positions. To built upon the innovative design, TDH-500 is ideally suited for the needs of cytogenetic laboratories to provide a good instrument.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

•Touch screen easy to read, program and use

•It can run In-situ PCR experiments

•Possibility to export cycles data via USB memory

•Four operation modes: denaturation/hybridization,

hybridization fixed temperature, custom, In-situ PCR

•The perfect sealing of the system ensures both temperature control and humidity requirements

•Rapid temperature rise and fall, only 4 minutes from 37 °C to 95 °C, and 8 minutes from 95 °C to 45 °C

•Rapid temperature warmp-up and accuracy of ±1°C

•Perfect humidity control system

•Can be used as a fixed temperature slide warmer

•Superior temperature uniformity accross all slide positions

  • Model
    TDH-500
  • Temperature control range
    RT.+5 °C~99.9 °C
  • Temperature accuracy
    ≤±1 ℃
  • Temperature uniformity
    ≤±1 ℃
  • Temp. display accuracy
    ±0.1 ℃
  • Timer
    1 min~99 h59 min or 1 sec~99 min59 sec
  • Heating time (37 °C to 95 °C)
    ≤4 min
  • Cooling time (95°C to 45°C)
    ≤8 min
  • Operation mode
    Denaturation/hybridization, hybridization fixed temperature, custom and In-situ PCR
  • Temperature control programmable
    30 ℃~100 ℃
  • Capacity
    12 slides
  • Power
    460 W
  • Weight
    6.2 kg
  • Dimension (D×W×H)mm
    225×420×143 mm
  • Code
    Description
  • AS-05010-00
    TDH-500 AC120 V 3 A or AC220 V 2 A, 50/60 Hz
