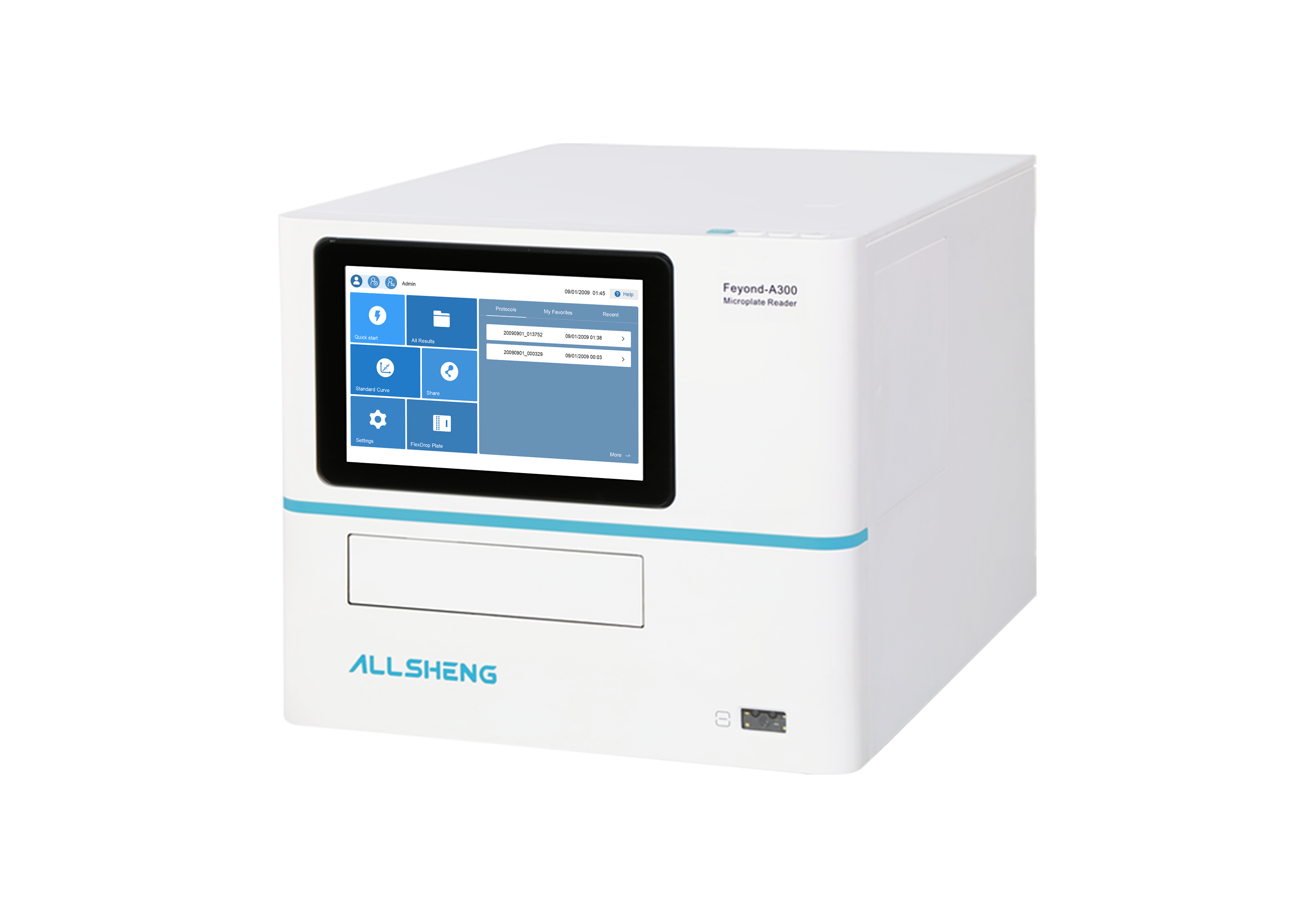

Microplate Reader — Feyond-A300/A400/A500

Allsheng multi-mode microplate reader series products can meet your various detection needs for microplates. We offer a variety of microplate reader solutions including absorbance, fluorescence, luminescence, time-resolved fluorescence, and fluorescence polarization to meet your specific workflow needs. We also offer a range of special, modular, and upgradeable detection accessories to enhance your detection experience.

Inquiry More


Model

Feyond-A300/Feyond-A400/Feyond-A500
Absorbance
Light source

Xenon lamp
Detector

PD
Wavelength accuracy

2 nm
Wavelength repeatability(SD)

0.2 nm
Half width (FWHM)

<2.5 nm
Wavelength range

200-1000 nm, 1 nm step
Measuring range

0-4 OD
Resolution

0.0001 OD
Accuracy@450nm

96-precision mode: ± (1.0 %+0.003 Abs) @(0.0-2.0 Abs] ±2.0 % @(2.0-3.0 Abs]
Repeatability@450nm

CV < 1.0 % or SD < 0.003 fast (0.0-3.0Abs] CV < 0.5 % or SD < 0.003 accurate (0.0-3.0Abs]
Stray light

0.1 % @220 nm
Linear@450nm

R²≥0.999@[0.0-3.0Abs]
Reading time

96-well plate: fast <15 s
Luminescence
Detector

PMT
Detection limit

15 amol/hole
Linear dynamic range

6logs
Crosstak

≤0.005%
Wavelength range

200-850 nm
Fluorescence
Reading mode

Top reading
Excitation light source

Xenon lamp
Detector

PMT
Wavelength range

EX:200-1000 nm;EM:270-850 nm
Filter EX/EM

3 groups: EX485/EM530, EX523/EM564, EX624/EM692 (other wavelengths can be replaced)
Detection limit

1 pM (optimization condition)
Linear dynamic range

6 logs
TRF
Filter EX/EM

1 group: EX365/EM612 (Feyond-A400/Feyond-A500)
Detection limit

0.02 pM (optimization condition)
FP
Filter EX/EM

1 group: EX485/EM530 (Feyond-A500)
Detection limit

5mP (Feyond-A500)
