iCen-24
  • iCen-24

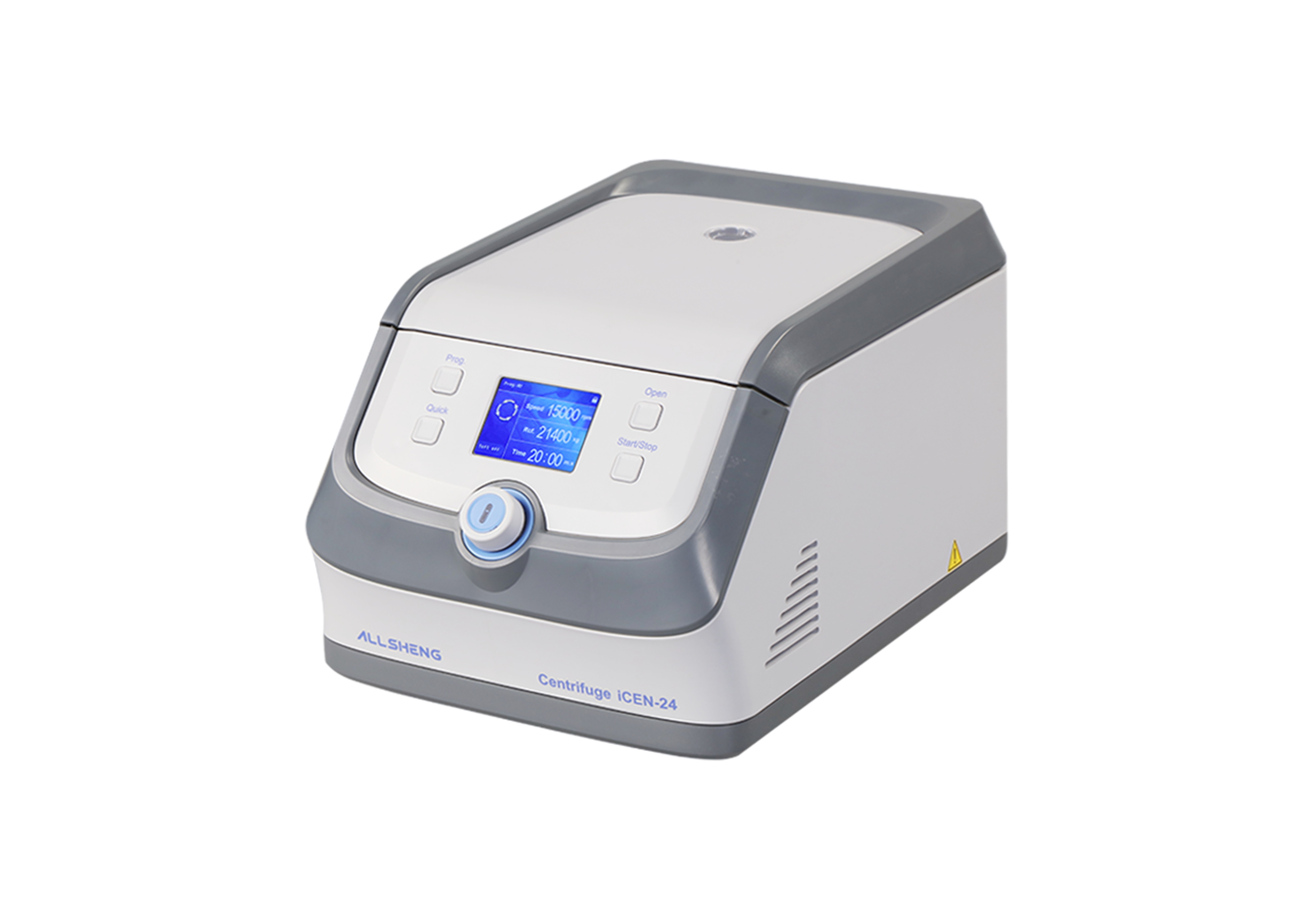

High Speed Centrifuge — iCen-24

iCEN-24 high speed centrifuge with 24-place capacity rotors are the new designed for the laboratory centrifuge. Their speed up to 15,000 rpm (21,400×g), allows for molecular biology applications in 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml, 5.0 ml and PCR tubes. Both models have the soft-brake function to protect sensitive samples.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

•Ultra-quiet operation, low noise level, noise ≤ 62 db

•Soft-brake function to protect sensitive samples

•Max. rotor capacity: 24×1.5/2.0 ml; Max. speed: 14,680 rpm (21,400 × g)

•Imported motor, maintenance-free

•LCD display with time, speed and RCF

•Separate short-spin key for quick centrifugation

•Automatic lid opening at the end of run - prevents sample warming and allows easy access to samples

•3 different rotors are available, adapt tp 0.2, 0.5, 1.5, 2.0, 5.0 ml centrifuge tubes and PCR tubes

•High-strength aluminum alloy rotor, no service life limit, can be sterilized at high temperature and high pressure

•Safe and reliable, various safety protections with CE safety standard

•Fast lifting speed, with 15s to rise to the maximum speed, and with 15s to drop from the maximum speed to 0

  • Model
    iCEN-24
  • Speed (rpm)
    500~15,000 rpm (increment 100 rpm)
  • Maximum centrifugation medium density
    1.2 g/ml
  • Acceleration and deceleration time (Soft off)
    ≤15 s
  • Acceleration and deceleration time (Soft on)
    45 s
  • Max. capacity
    24×1.5 ml/2.0 ml
  • Maximum rotor diameter
    85 mm
  • Max. RCF
    21400×g
  • Max. power
    350 W
  • Dimension (W×D×H) mm
    260×410×225
  • Weight with one rotor
    14 kg
  • Timer
    1 s-99 min59 s (short-spin)
  • Power supply
    AC100-120 V/AC200-240 V  50-60 Hz
  • Code
    Description
  • AS-08120-00
    iCEN-24 high speed centrifuge, AC 100-120 V/AC200-240 V, 50-60 Hz
  • AS-08121-01
    24x1.5 ml/2.0 ml rotor
  • AS-08121-02
    4-8x0.2 ml PCR strip rotor
  • AS-08121-03
    12x5 ml rotor
  • AS-08041-01
    Adapters for 0.5 ml tubes
  • AS-08041-02
    Adapters for 0.2 ml tubes
