GeneCE-100 Biological Fragment Analysis System, Supports Your Experiments

Release time：2025-07-08 ALLSHENG

Source：

Pageviews：289

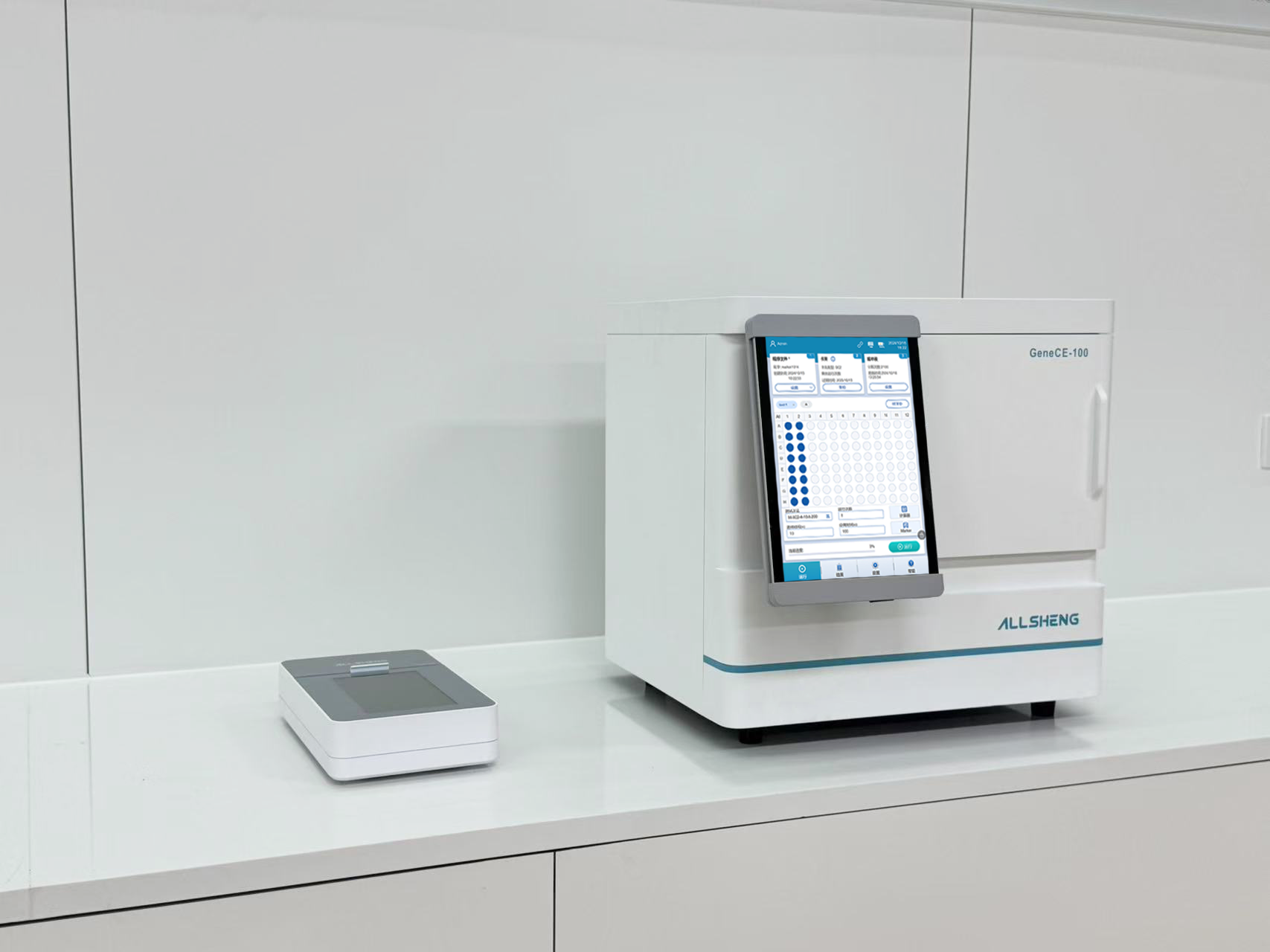

GeneCE-100 offers nucleic acid quality control for a range of applications, including DNA QC, NGS libraries, cell-free DNA (cfDNA), PCR fragments and RNA QC. lt provides consistent high-precision analysis by using the same single-channel cartridge. And it provides flexible sample capacity from 1 to 104 samples.

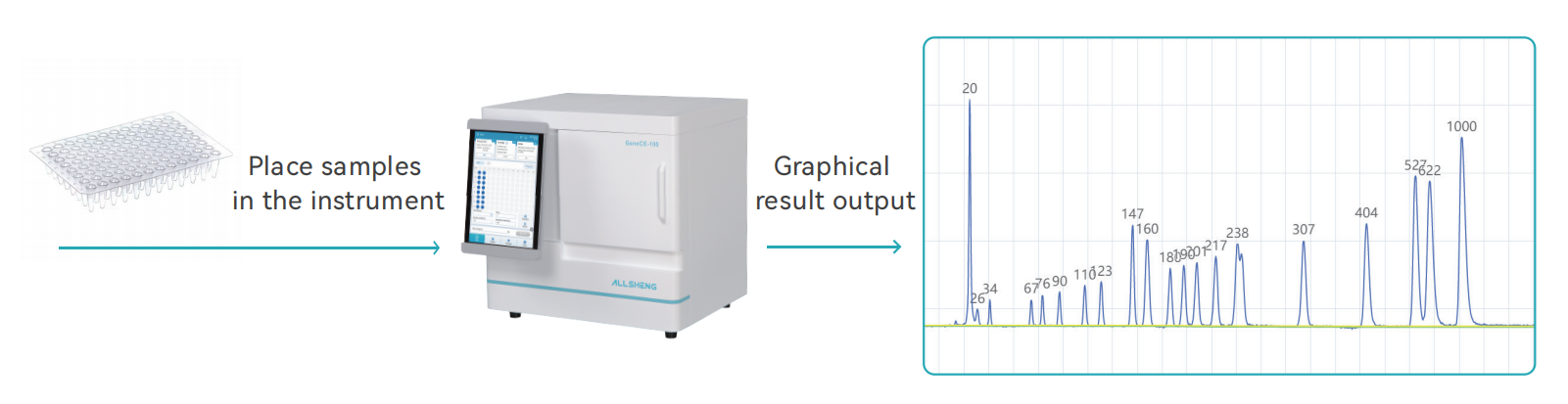

Experimental Process

Features

1 Convenient Operation

Equipped with a 10-inch rotatable touch screen as standard, which can switch between horizontal and vertical screens according to analysis needs.

2 Cartridge Precast Gel

No need for manual glue preparation and filling, just plug and play, Each cartridge can analyze 240 samples.

3 Parallel Analysis

A single test throughput of 1-104 samples can be achieved.

4 High Sensitivity

Nucleic acids can be detected at concentrations as low as 0.2pg/µL.

5 High Resolution

For DNA fragments within 500bp, the resolution can reach 1-4bp, and for fragments within 200bp, the resolution can reach 1bp.

6 Cartridge Life Counting

The RFID chip embedded in the cartridge can auto-record the number of tests and the expiration date, and give a prompt.

7 Reliable Results

Provides sample concentration, fragment length, 28S/18S, genomic DNA integrity DII value, RNA integrity RII value, etc.

8 Various Specifications

Including DNA-related high-sensitivity, high-resolution, large-fragment and standard kits, RNA-related high-sensitivity and standard kits.

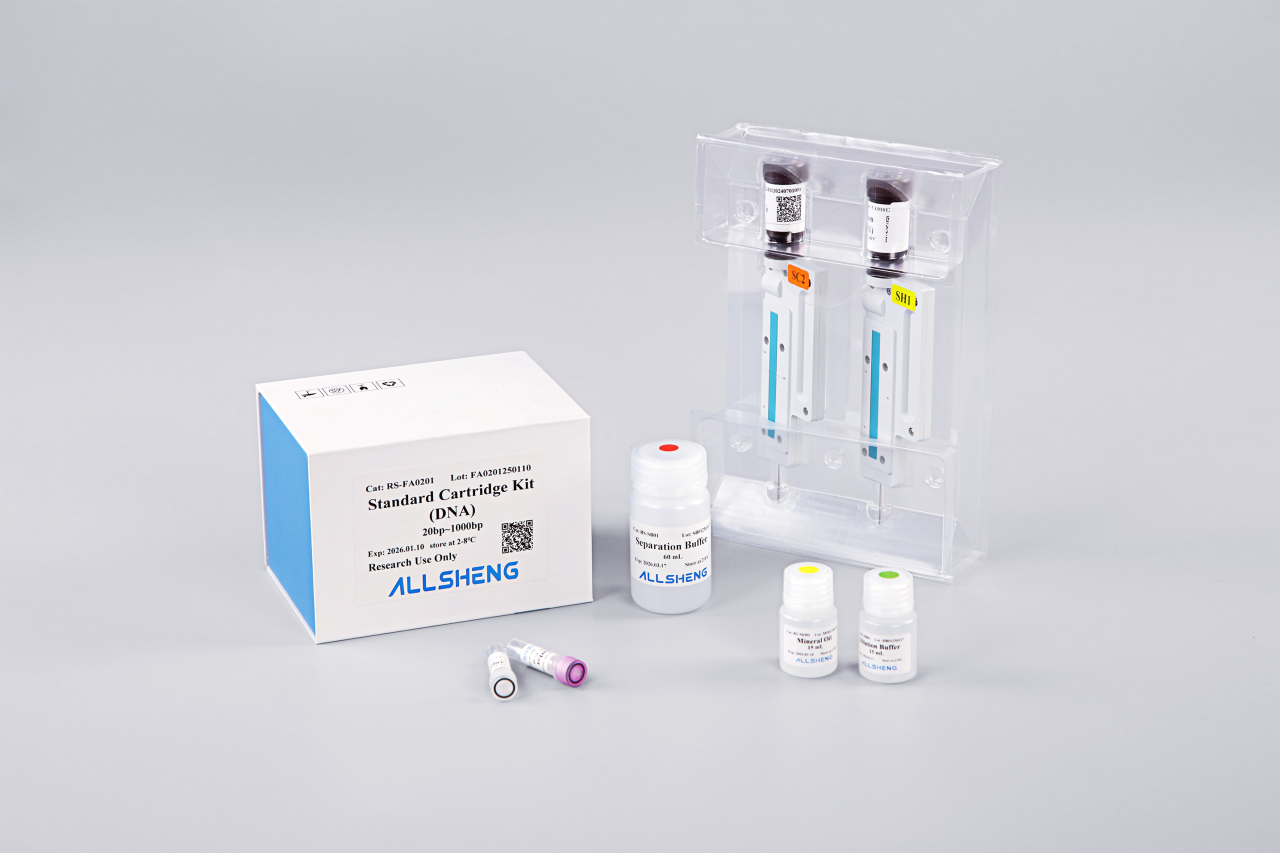

Fragment Analysis Kit

4 fragment analysis kits are suitable for the GeneCE-100 biological fragment analysis system, mainly used for the detection of DNA fragment size and concentration of samples such as gDNA, cfDNA, FFPE blocks, PCR products, fragmentation libraries, etc. Compared with traditional electrophoresis, it has the advantages of high resolution, fast separation speed, low sample consumption, high detection sensitivity and fully automated.


DNA Fragment Analysis Kit
Name	Standard (DNA) cartridge kit (SC2)	High resolution (DNA) cartridge kit (SH1)	High sensitivity (DNA) cartridge kit (NH1)	Large fragment (DNA) cartridge kit (LS1)
Separation Range	20-5000bp	20-5000bp	20-5000bp	20-23000bp
Maximum Resolution	4-10bp	1-4bp	4-10bp	4-10bp
Number of Cartridge	240 times	240 times	100 times	240 times
LOD	1pg/uL	1pg/uL	0.2pg/uL	20pg/μL
Application	NGS library quality control, PCR detection	Multiplex PCR detection, SSR analysis	Analysis of low-concentration DNA samples, such as cfDNA	Genome, next-generation sequencing library

Common Applications

Genomic DNA Quality Control

Performs initial sample QC on gDNA samples, evaluates samples for degradation, and ensures integrity of initial samples.

Library Quality Control

By high-precision detection of the fragment distribution and fragment size for NGS libraries, it ensures that the library quality meets the sequencing requirements, thus enhancing the reliability of sequencing data and experimental efficiency.

cfDNA Quality Control

Conduct quality control on cfDNA samples to determine whether there is contamination of high molecular weight genomic DNA. Determine the degree of cfDNA degradation through fragment peak shape to ensure the reliability of downstream applications.

PCR Product Analysis

High resolution (DNA) cartridge kit (SH1) can significantly improve the resolution of multi-target detection and is suitable for applications such as SNP, SSR, multiplex PCR, and bacterial/viral screening and identification.

The field of biological fragment analyzers has long been dominated by overseas brands, and GeneCE-100 is one of the few products in China with independent intellectual property rights. If GeneCE-100 is paired with the Allsheng Auto-NGS series automated NGS library preparation workstation, it can make your NGS library preparation process more complete.
