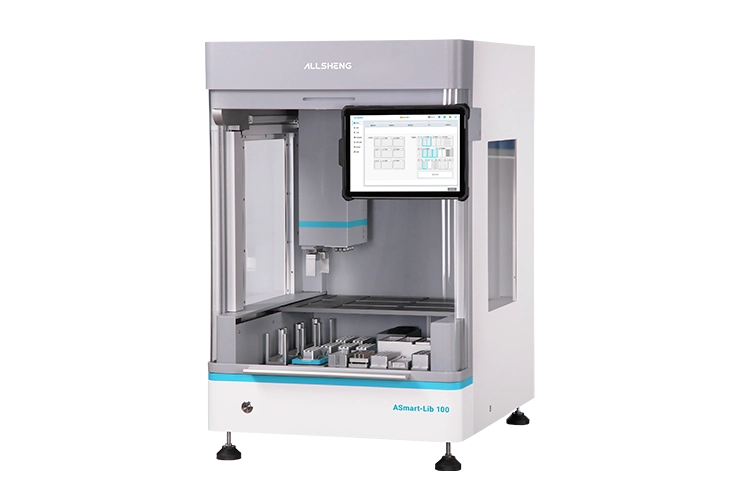

Automated NGS Library Preparation Workstation

ASmart-Lib 100

Adopting an innovative dual-layer plate design, the ASmart-Lib 100 significantly reduces its overall footprint while maintaining experimental throughput. With “compact size and high performance” as its core advantages, it enables efficient automated library preparation within limited space. It can either independently complete the whole process of sample-to-library, or operate as a pre-processing unit for large-scale sequencing platforms, enabling a “compact yet powerful” experimental layout.

INQUIRY

Innovative dual-layer design, big power in a compact size
Efficient contamination prevention
Precise pipetting, 2-in-1 pipettor and gripper

Technical Specifications

Ordering Information

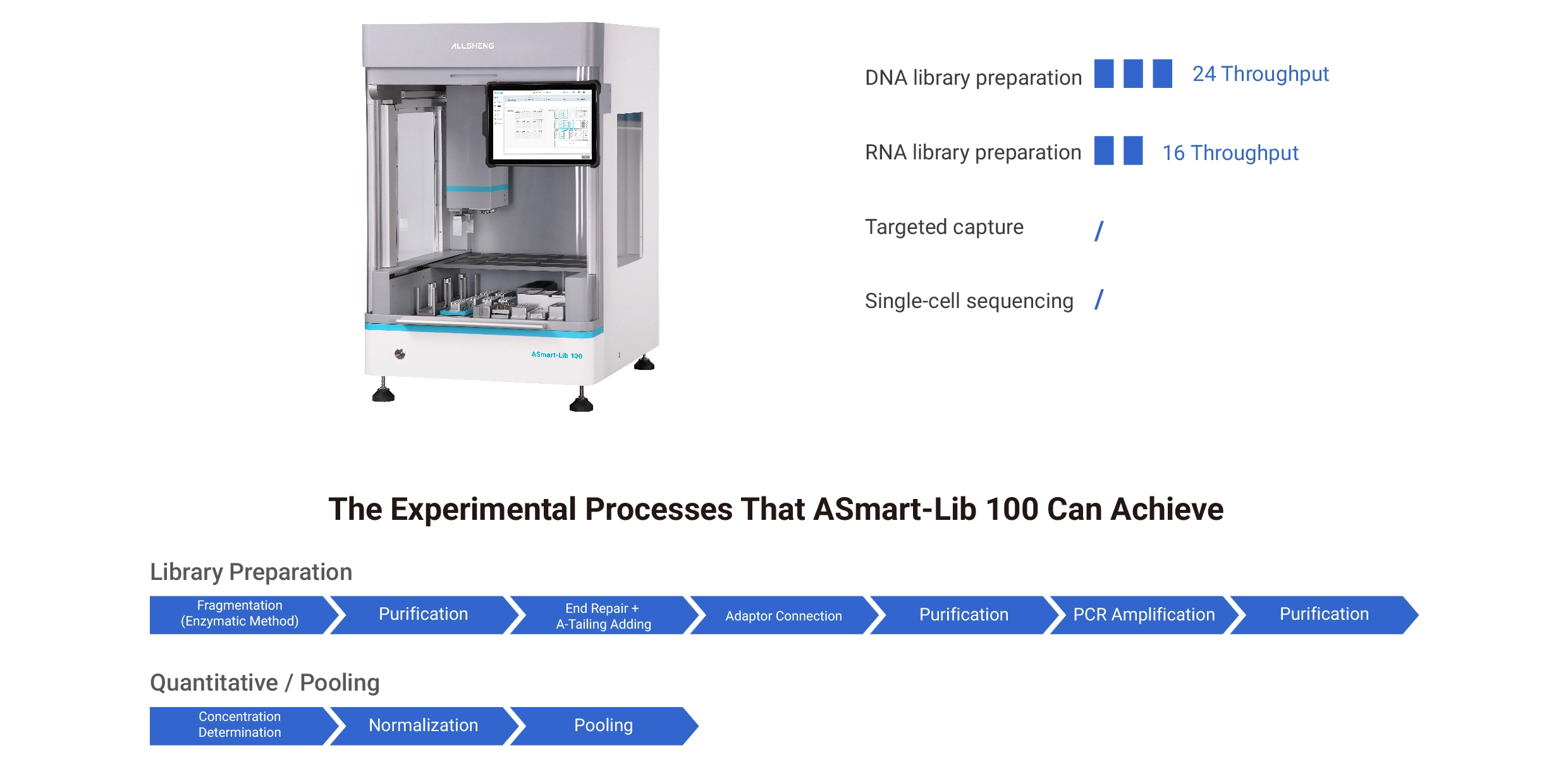

Overview

Key Configuration

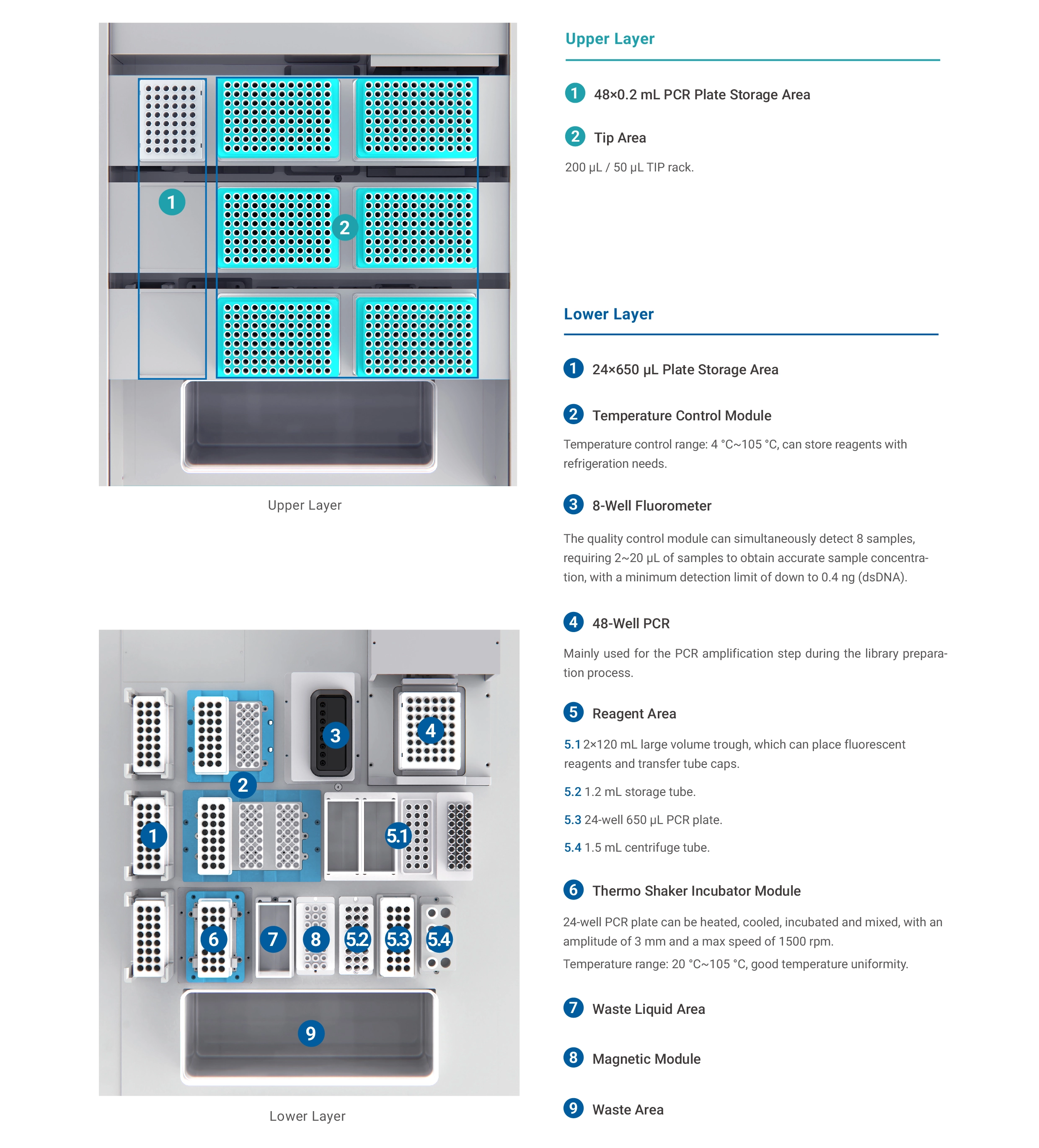

Plate Layout

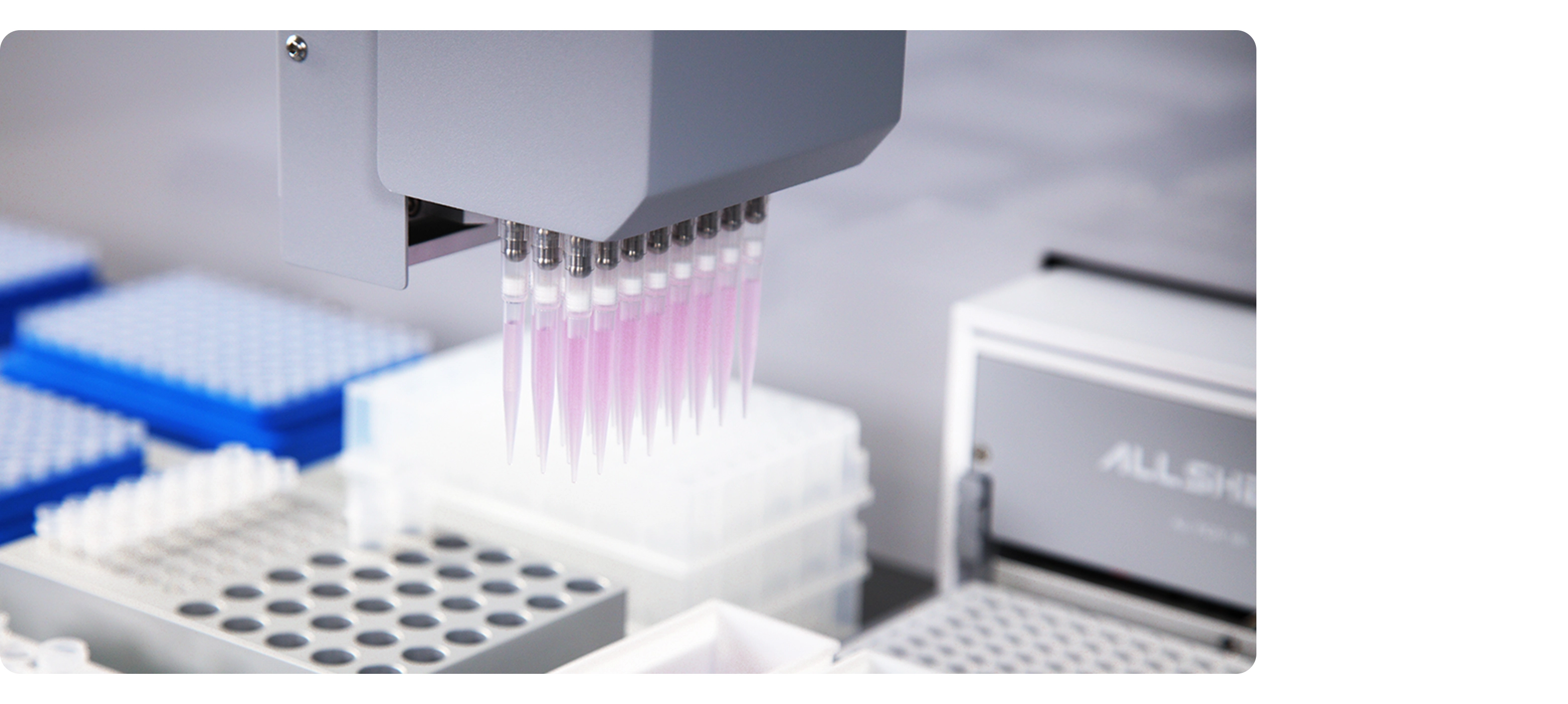

24-Channel Pipettor

Pipetting range 1~200 μL, 24-channel fixed spacing pipettor can be used as 24 channels, 16 channels, 8 channels, single channel or any channel.

PLLD / CLLD function, which can sensitively detect liquid level, residual liquid volume and blockage to ensure precise control of liquid sampling process.

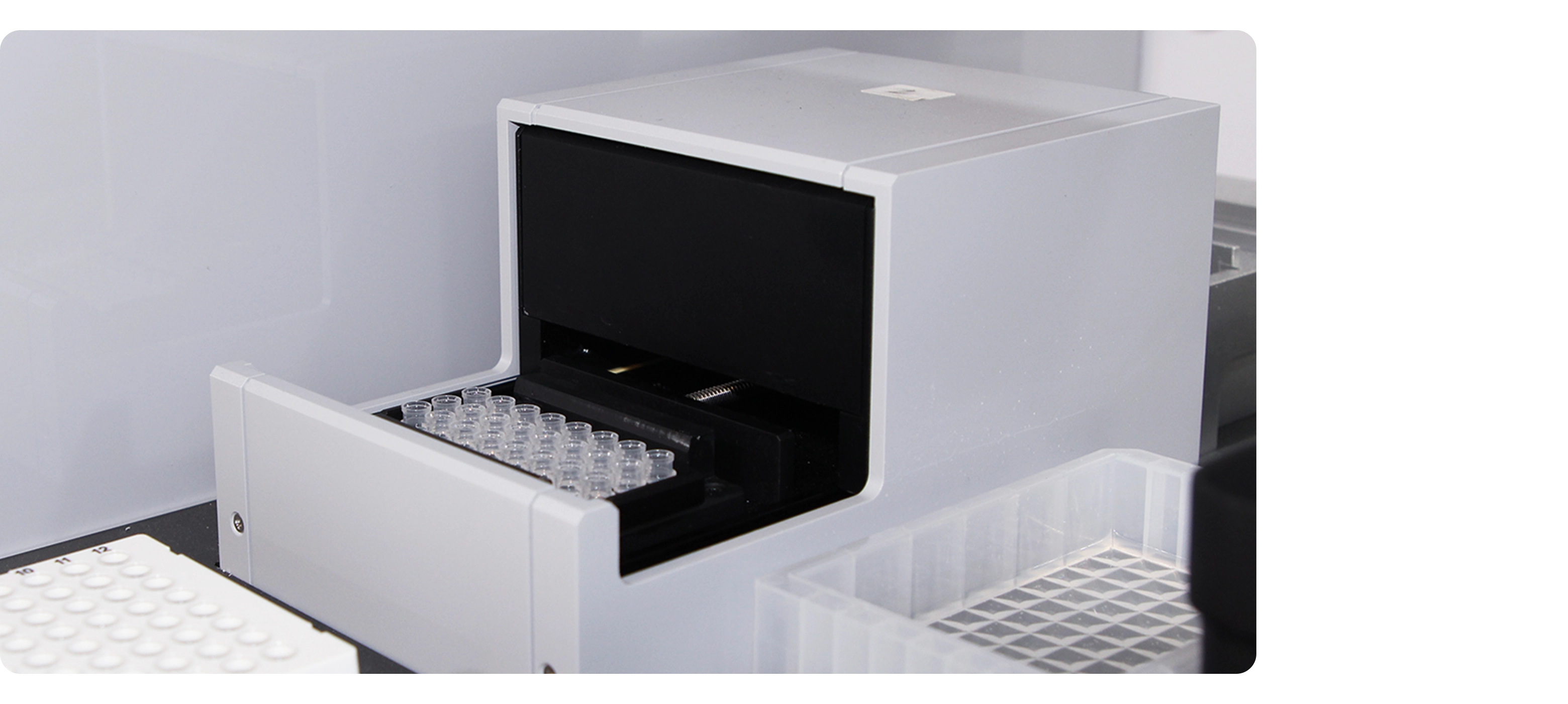

Fluorometer

The fluorometer module, independently developed and designed by Allsheng, meets concentration measurement requirements during library preparation. With software, it can realize automated normalization, pooling, etc.

24-well design, can test 24 samples simultaneously.

Lowest detection limit down to 0.02 ng/μL (dsDNA).

Accurate quantitation and high accuracy with only 2~20 μL samples.

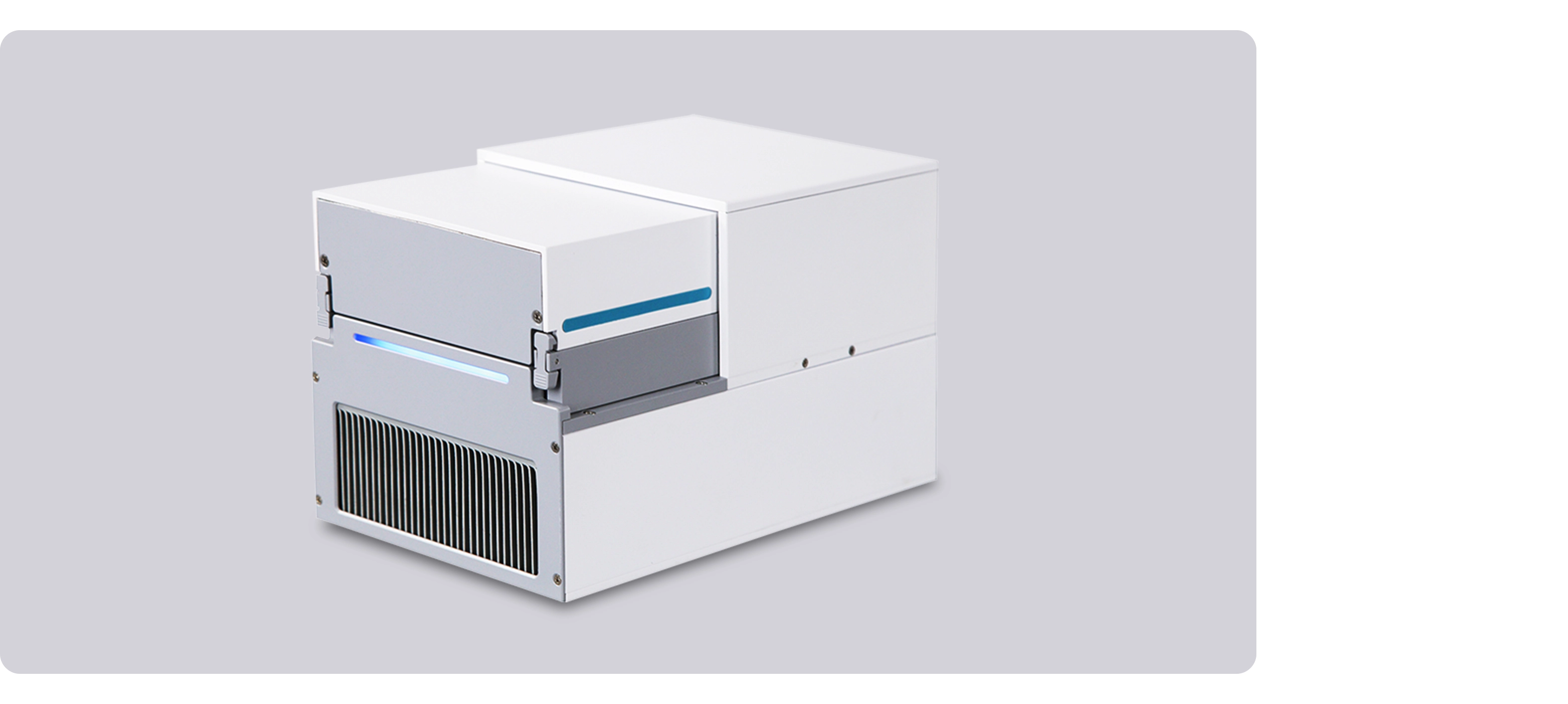

PCR Module

Module temperature control range: 4 °C ~ 99 °C, the temperature range of the thermo lid is 30 °C~120 °C

Temperature precision: ≤0.2 °C @55 °C, temperature accuracy ≤±0.3 °C @55 °C

Temperature uniformity: ≤0.7 °C (@55 °C, 72 °C)

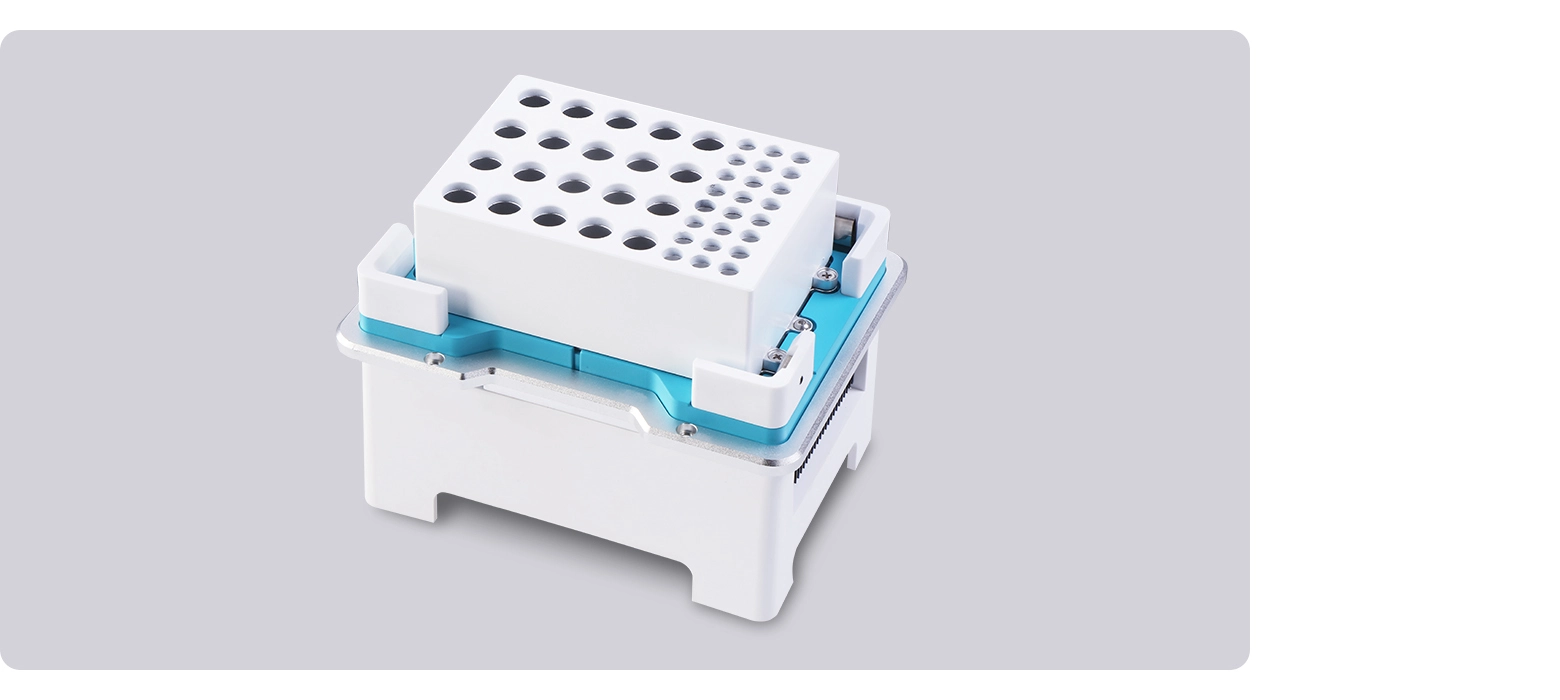

Temperature Control Module

Can be freely set at 4~105 °C. It's the standard temperature control module. According to the usages, module adapters can be customized to meet different consumables requirements.

Temperature accuracy: ≤1 °C

Temperature uniformity: ≤1 °C, @55 °C

1

Simple Reagent Input

Free selection of well positions, and support for pre-filled reagents
2

Clear Software Logic

The protocol running framework is completed through drag and drop operations
3

Graphical Step Editing

Easy to get started, with built-in multiple liquid parameters matching precise pipetting requirements
4

Detailed Operation Guidance

Follow the software prompts to place consumables in order to run the protocol

Model	ASmart-Lib 100	Auto-NGS 100RF	Auto-NGS 180S	Auto-NGS 200
Throughput	24	24	48	96
Pipettor	24-channel	8-channel	24-channel	24-channel
Pipetting range	1~200 μL	1~200 μL	1~200 μL	1~200 μL
Heating shaker module	√	-	√	√
Quality control module	√	√	√	√
PCR module	√	√	√	√
Dimension (W×D×H)	540×670×830 mm	800×774×775 mm	980×793×830 mm	1420×790×800 mm

Note: "Throughput" refers to the instrument's maximum throughput

Model	ASmart-Lib 100
Throughput	1~24
Tiles number	23 (upper layer: 9, lower layer: 14)
Pipettor	Channel number: 24-channel (can be used as a single channel)
Pipettor	Pipetting range: 1~200 μL
Pipettor	Pipetting precision (CV): 1 μL: ≤8%; 2 μL: ≤5%; 5 μL: ≤4%; 20 μL: ≤1%; 100 μL: ≤1%; 200 μL: ≤1%
Pipettor	Pipetting accuracy (A): 1 μL: ±10%; 2 μL: ±8%; 5 μL: ±4%; 20 μL: ±2%; 100 μL: ±1%; 200 μL: ±1%
Temperature control module	Module number: 3
Temperature control module	Temperature control range: 4~105 °C
Temperature control module	Accuracy: ≤1 °C
Temperature control module	Uniformity: ≤1 °C @55 °C
Thermal cycler	Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycler	Uniformity: ≤0.5 °C
Thermal cycler	Accuracy: ≤±0.3 °C
Fluorescence detection throughput	8
Fluorescence detection range	0.4 ng~100 ng
Heating shaker module	Yes
Magnetic module	24-well annular magnetic module
Gripper	Yes
Consumables stacking mode	Consumables stack
UV sterilization	Equipped with UV sterilization lamp, HEPA device
Instrument port	USB port
Information management	External scanner for entering sample / reagent information Expandable LIS system connection Expandable cloud database connection
Operating environment	Temperature requirement: 20±5 °C Relative humidity: ≤80%
Power supply	100~240 V, 50 / 60 Hz, rated power 1100 W
Dimension (W×D×H) mm	540×670×830 mm
Weight	70 kg
