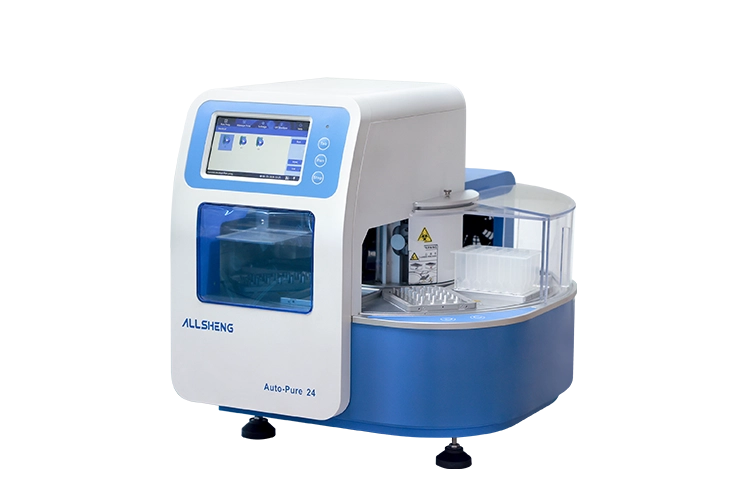

Nucleic Acid Purification System
Auto-Pure 24
Auto-Pure 24 nucleic acid purification system adopts magnetic bead separation technology, using 24 deepwell plate, 24 magnetic rod comb (10,000 μL reaction system). Combined with different kinds of magnetic bead nucleic acid extraction kits, it can operate 1~24 samples simultaneously and extract DNA and RNA rapidly in 30~60 minutes.
-
High throughput fast extraction, 1~24 samples can be extracted at the same time
-
Open design, suitable for most of the cartridges on the market
-
Center rotary table design, stable operation and reliable
Features
| Model | Auto-Pure 24 |
| Throughput | 1~24 |
| Process volume | 50~10000 µL |
| Consumables | 10 mL cartridge + magnetic rod comb |
| Working principle | Magnetic bead method, magnetic rod type / center rotary table |
| Software security | Operating system encryption function can effectively prevent malicious tampering with parameters and programs |
| Purification accuracy | 100 copy sample positive rate >95 % |
| Stability | CV <5 % |
| Lysis temperature | RT.~120 °C |
| Elution temperature | RT.~120 °C |
| Mixing | Mixing ways can be editable |
| Operation interface | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Built-in program | 8 groups of preset programs, 100 groups of programs can be stored |
| Program management | New, edit, delete, save as |
| Expansion interface | Expandable Ethernet remote control, WiFi, 4G network |
| Lighting | Yes |
| Sterilization | UV light |
| Exhaust way | Fan |
| Data storage | Available, with built-in SD card |
| Max. input power | 300 W |
| Dimension | 56 cm×62 cm×50 cm |
| Weight | 54 kg |
| Code | Product description |
| AS-17070-00 | Auto-Pure 24 nucleic acid purification system |
| AS-17071-01 | Magnetic tip comb for Auto-Pure 24 |
| AS-17071-02 | 24 x 14.6 mL plate for Auto-Pure 24 |
| AS-17100-00 | Auto-Pure 24 nucleic acid purification system |
| AS-15020-00 | Sealbio-2 semi automated plate sealer |
| AS-15021-03 | SBA-3 weighted sealing platen |
| AS-15021-11 | Seal-150 peelable clear seal |
| AS-15021-12 | Seal-200 peelable seal for storage |
| AS-15021-13 | Seal-300 pierce aluminum heating sealing film |
Recommended Resources
Center Rotary Table Type Nucleic Acid Purification System - Selection Guide
Explore More
Product Information
Related Literature
-Vascular endothelial growth factor pathway in endometriosis: genetic variants and plasma biomarkers
Selection Guide
Model | |||
Throughput | 1~96 | 1~48 | 1~24 |
Processing volume | 50~1000 μL | 50~3000 μL | 50~10000 μL |
Consumables | 96 deepwell plate + 96 magnetic rod comb | 3 mL cartridge + magnetic rod comb | 10 mL cartridge + magnetic rod comb |
