Homogenizer

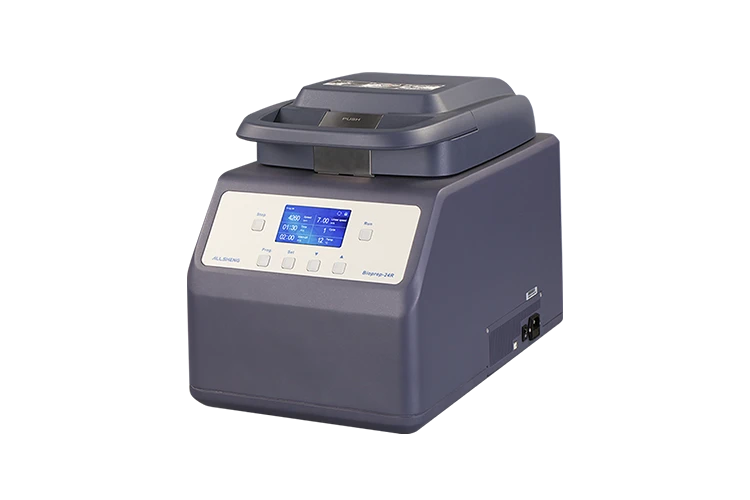

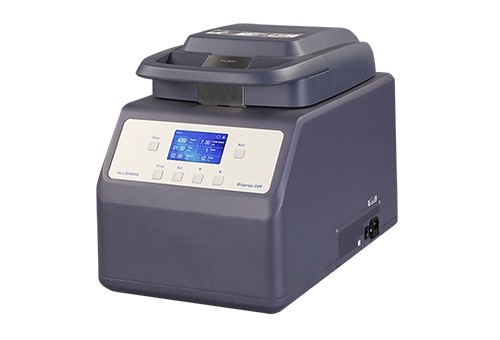

Bioprep-24R
Bioprep series is a fast and effective homogenizer with function of grinding, lysis and homogenizing by three-dimensional vibration and the coordination of the grinding beads (glass beads, silica beads, metal beads etc.). Effective to homogenize the animal or plant tissue, bacteria, fungus and so on. It also has extraordinary power for processing hard lysis samples such as spores, hair, bones, feces, soil etc. With the use of relevant kits, it can quickly, efficiently and steadily extract DNA / RNA / protein from samples in bulk, and preserve the integrity of biomacromolecule.
-
Sealed grinding chamber, the lowest temperature: -10 °C -
Have the dry homogenization and wet homogenization function
Features
-
Can lyse most samples and preserve the integrity of biomolecules (DNA, RNA, proteins) and drug molecules.
Use a separate crushing tube for each sample, no cross-contamination.
Beads are available in a variety of materials and diameters for different types of samples.
Grinding chamber is sealed, and the lowest freezing temperature can reach -10 ℃.
The grinding cavity has a built-in vortex fan, so that the temperature difference in the cavity is ≤2 °C.
Adopt fluorine-free compressor for refrigeration, environmental protection and no pollution.
With dry grinding and wet grinding function.
NGS Library Preparation General Solution
| Model | Bioprep-24R |
| Temperature range | -10 °C~40 °C |
| From RT. to 0 °C | <30 min |
| Temperature uniformity | ≤±2 ℃ |
| Display | OLED |
| Speed range (m/s) | 4.00 m/s~7.00 m/s increment 0.05 m/s |
| Speed range (rpm) | 2430 rpm-4260 rpm, increment 10 rpm |
| Cycle duration | 1 s-90 s, increment 1 s |
| Pause time | 1 s-120 s, increment 1 s |
| Cycle | 10 |
| Stored program | 50 |
| Sample volume | 24×2 mL / 1.5 mL, 12×5 mL grinding tube |
| Acceleration time | <4 s |
| Deceleration time | <4 s |
| Noise | <70 db |
| Wearing part | No |
| Rotor | Rotor for 2 mL (standard), rotor for 5 mL (optional) |
| Power | 1000 W |
| Dimension (W×D×H) | 330 mm×520 mm×400 mm |
| Weight (kg) | 40.0kg |
| Power supply | AC 100 V / AC 240 V, 50 / 60 Hz |
| Code | Product description |
| AS-13030-00 | Bioprep-24R refrigerated homogenizer |
| AS-13011-01 | Rotor for 24×2.0 mL (Bioprep-24 / Bioprep-24R) |
| AS-13011-02 | Rotor for 6×5.0 mL (Bioprep-24) -- stop production |
| AS-13011-30 | Rotor for 12×5.0 mL (Bioprep-24 / Bioprep-24R) |
| AS-13011-03 | 2.0 mL tube |
| AS-13011-04 | 5.0 mL tube |
| AS-13011-05 | Φ1.4 mm silica beads |
| AS-13011-06 | Φ2.8 mm silica beads |
| AS-13011-07 | Φ3 mm metal beads |
| AS-13011-08 | Φ6 mm metal beads |
| AS-13011-09 | Φ0.2 mm glass beads |
| AS-13011-10 | Φ0.5 mm glass beads |
| AS-13011-12 | Φ3.0 mm glass beads |
| AS-13011-13 | Φ1.4 mm metal beads |
Related Products
Recommended Resources
Homogenizer - Selection Guide
Explore More
Product Information
Related Literature
Selection Guide
Model | |||
Temperature range | RT. | RT. | -10℃~40℃ |
Speed range (m/s) | 4.00 m/s~7.00 m/s, increment 0.05 m/s | 4.00 m/s~7.00 m/s, increment 0.05 m/s | 4.00 m/s~7.00 m/s, increment 0.05 m/s |
Speed range (rpm) | 2500 rpm-4350 rpm, increment 10 rpm | 2430 rpm-4260 rpm, increment 10 rpm | 2430 rpm-4260 rpm, increment 10 rpm |
Sample volume | 6×2 mL / 1.5 mL, 2×5 mL | 24×2 mL / 1.5 mL, 12×5 mL | 24×2 mL / 1.5 mL, 12×5 mL |
