Automated Tissue Dissociation

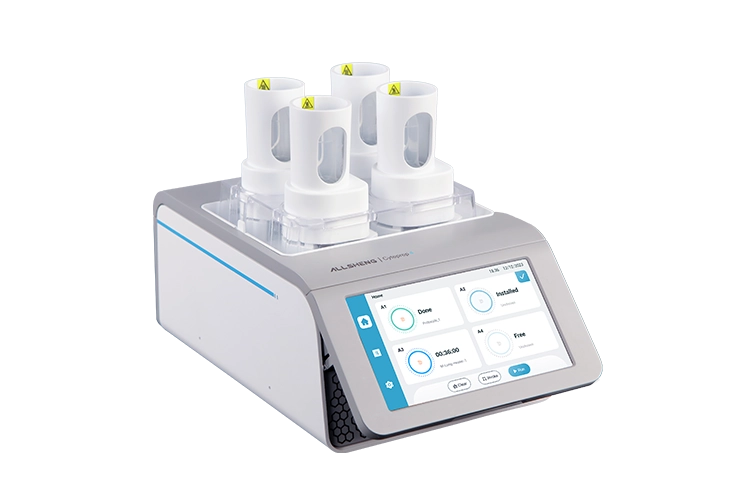

Cyteprep 4
Allsheng Cyteprep 4 automated tissue dissociation, used with self-developed disposable tissue dissociation tubes and high activity general tissue enzymatic digestion kits, together with built-in differential tissue dissociation protocols, enables automated and efficient dissociation of tissue samples.
The instrument precisely processes a wide range of tissue into single-cell suspensions with outstanding homogeneity, high cell viability, and optimal yield. It delivers stable dissociation effects and significantly improves experimental reproducibility, providing researchers with a standardized, high-efficiency solution for single-cell sample preparation.
The instrument precisely processes a wide range of tissue into single-cell suspensions with outstanding homogeneity, high cell viability, and optimal yield. It delivers stable dissociation effects and significantly improves experimental reproducibility, providing researchers with a standardized, high-efficiency solution for single-cell sample preparation.
-
Multi-Channel Independent Operation -
Mild and Efficient Dissociation -
Self-Developed Grinding Technology
Self-Developed Grinding Technology
-

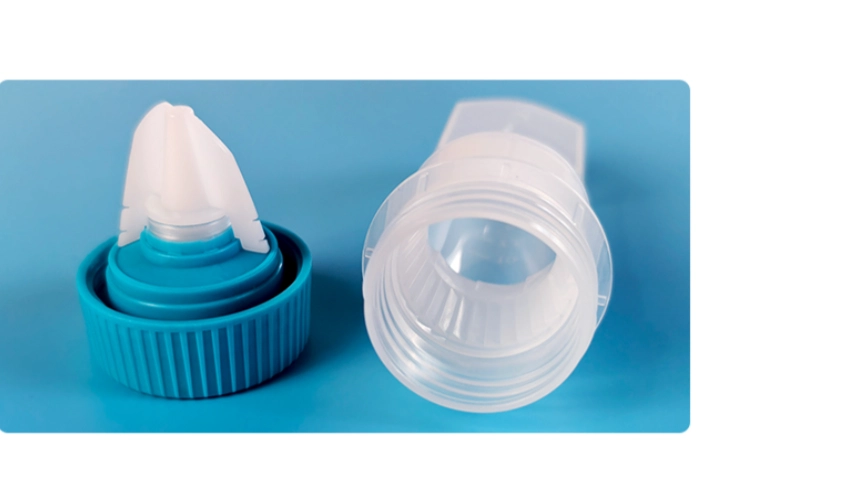

Our self-developed tissue centrifugal grinding technology [Patent No.: CN223535092U] features an innovative design with grinding teeth on the inner wall of the tube. This design ensures continuous contact between the tissue and the teeth during centrifugal rotation, significantly improving grinding efficiency and sample processing quality.

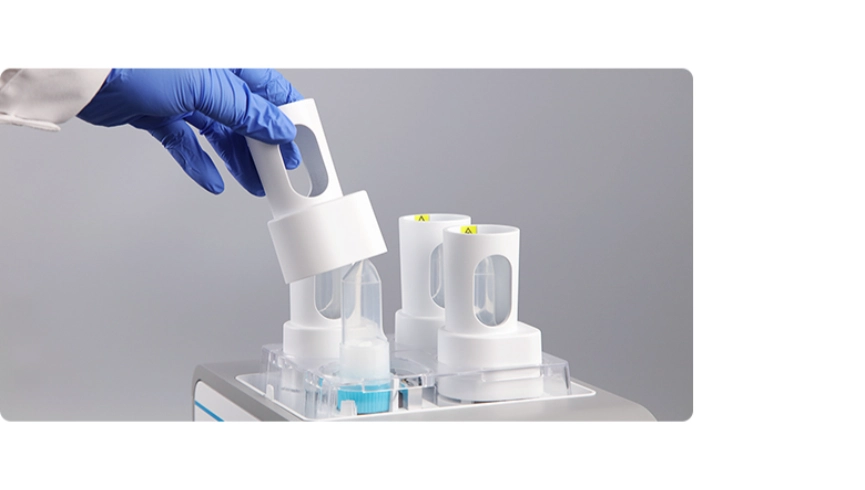

Multi-Channel Independent Operation
-
Featuring a 4-channel or 8-channel operation system, the instrument can process multiple tissue samples simultaneously, without interference between channels, significantly reducing the experimental cycle and enhancing efficiency. With a 7-inch touch screen and an intelligent interface, it automatically identifies the placement channels for dissociation tubes and identifies heating blocks.
Mild and Efficient Dissociation
-
Use a collaborative processing technology that combines enzymatic digestion and mechanical dispersion. Enzymatic digestion specifically targets the degradation of extracellular matrix and adhesion molecules, while mechanical dispersion continuously disrupts tissue blocks, producing high-quality single-cell suspensions. Combined with efficient and broad-spectrum tissue dissociation reagents, it can generate high-yield, homogeneous single-cell suspensions within 15 min.
Superior Performance
-

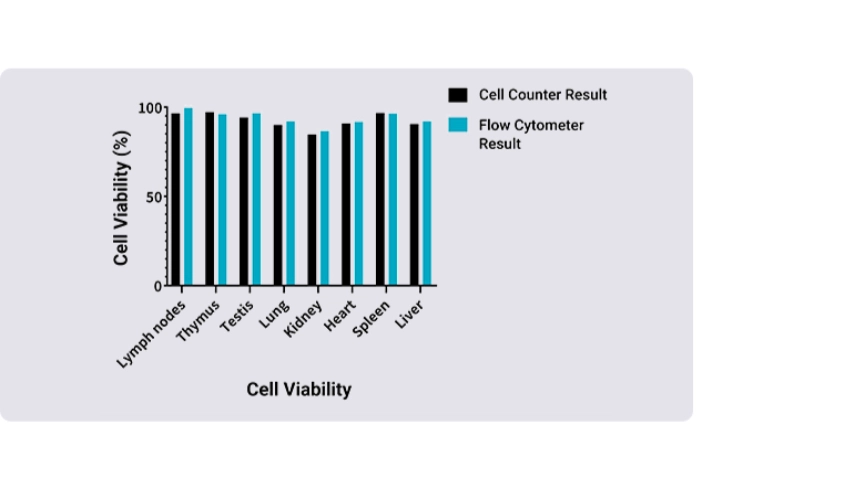

After rigorous testing, the prepared single-cell suspension maintains a stable viability exceeding 90%, with the significant advantages of high yield and high homogeneity, ensuring high-quality samples for downstream experiments.
-
-
-

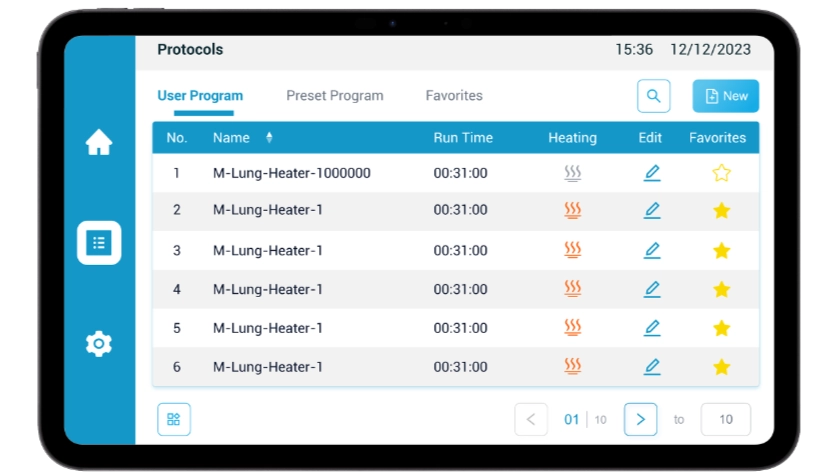

1Standardized Program SetupWith a built-in library of standardized dissociation programs, it enables unified operation and parameter settings. The integrated heating block delivers precise temperature control for the dissociation tubes, effectively eliminating variations in sample dissociation caused by manual operation, ensuring stable and reliable experimental results.
-

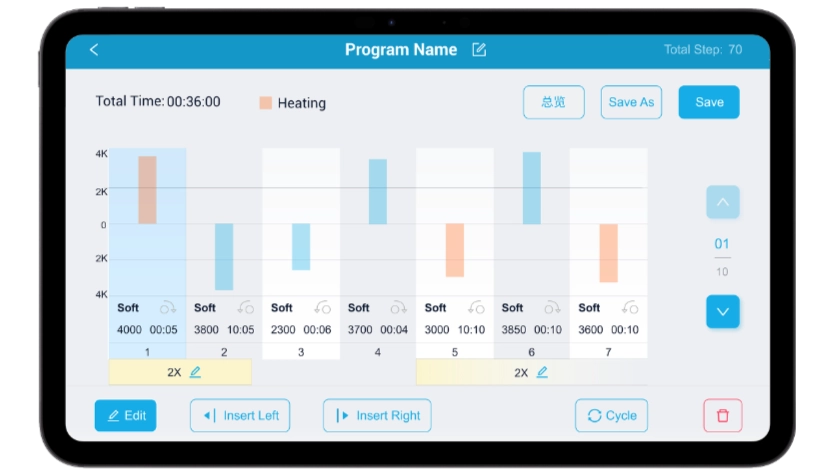

2Flexible Parameter AdjustmentThe instrument supports precise adjustment of all parameters and allows customization of dissociation programs, enabling in-depth exploration of optimal processing solutions for diverse tissue samples to meet varied research needs.
-
01

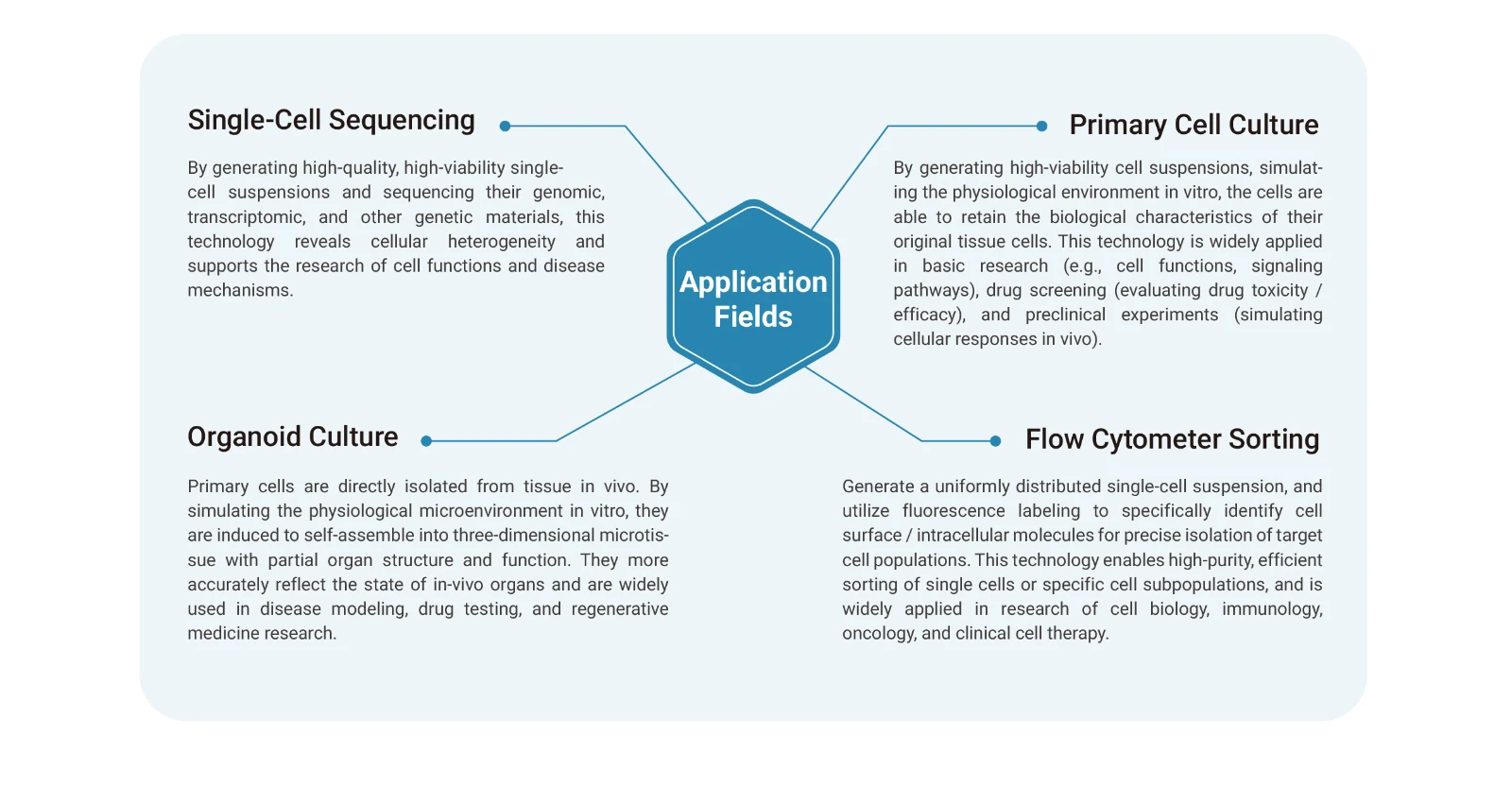

Application Fields
02
Application Case
| Model | Cyteprep 4 |
| Sample weight | 20~4000 mg |
| Buffer volume | 0.3~10 mL |
| Motor speed | 0~4100 rpm |
| Incubation temperature | 37 °C |
| Temperature accuracy | ±0.5 °C |
| Temperature fluctuation | ±0.2 °C |
| Channel quantity | 4 |
| Heating module | 4 |
| Display screen | 7-inch touch screen |
| Maximum number of protocols | 500 |
| Power input | 100~240 VAC 50~60 Hz |
| Maximum power | 250 W |
| Interface | USB (Type A)×2, USB (Type B)×1 |
| Dimension (W×D×H) | 200×280×160 mm |
| Weight | 6.5 kg |
| Code | Product description |
| AS-32170-00 | Cyteprep 4 automated tissue dissociation (4-channel) |
| AS-32171-01 | Tissue dissociation tube |
| AS-32171-02 | Heater |
| AS-32171-03 | Heater tray |
| AS-32171-04 | Safety shield |
| AS-32171-05 | Waterproof tray |
| AS-32171-06 | Driving shaft-sleeve |

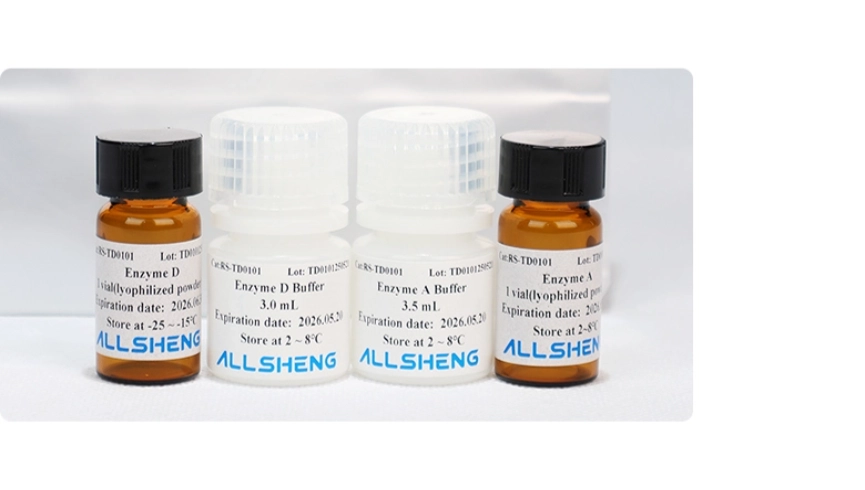

| RS-TD0102 | High activity general tissue enzymatic digestion kit |
