Feyond-M300/M380/M400/M480/M500/M580
  • Feyond-M300/M380/M400/M480/M500/M580

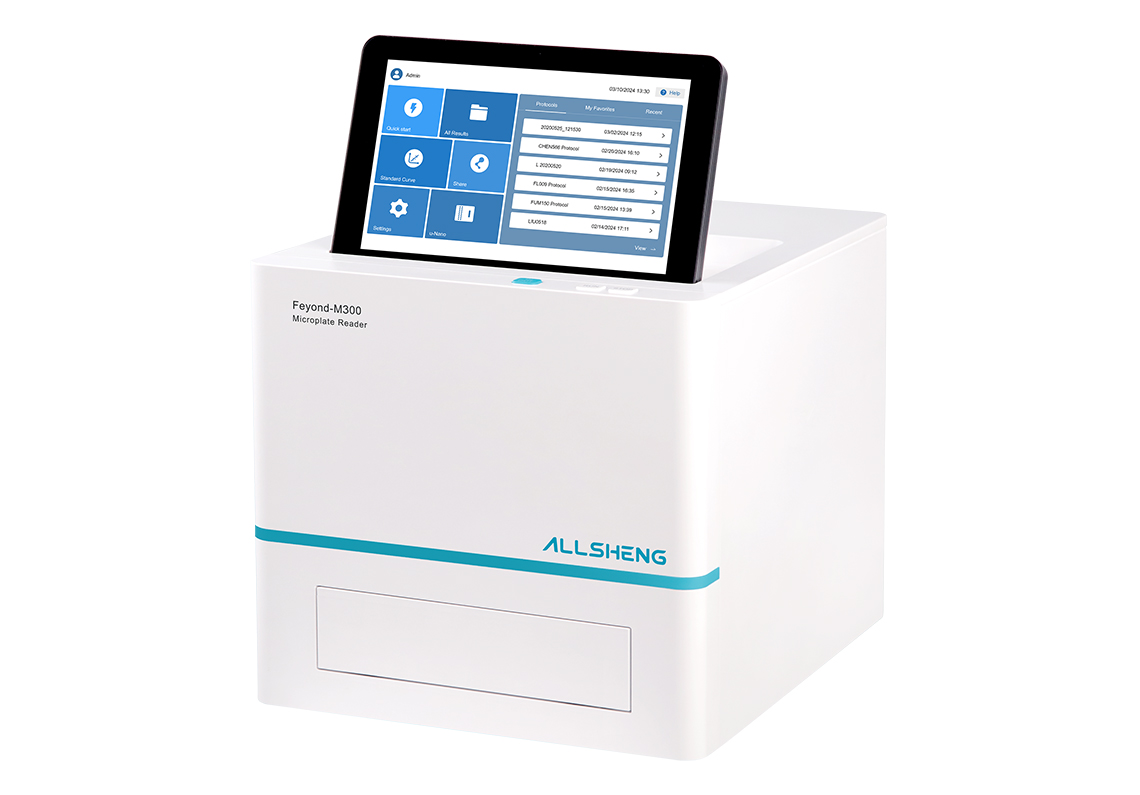

Microplate Reader — Feyond-M300/M380/M400/M480/M500/M580

The Feyond-M series is a cost-effective multi-mode microplate reader combining economy and high-performance. It is not only suitable for common detection of absorbance, fluorescence and luminescence, but also suitable for detection of time-resolved fluorescence and fluorescence polarization applications with special requirements.

Inquiry More
  • ALLSHENG ALLSHENG

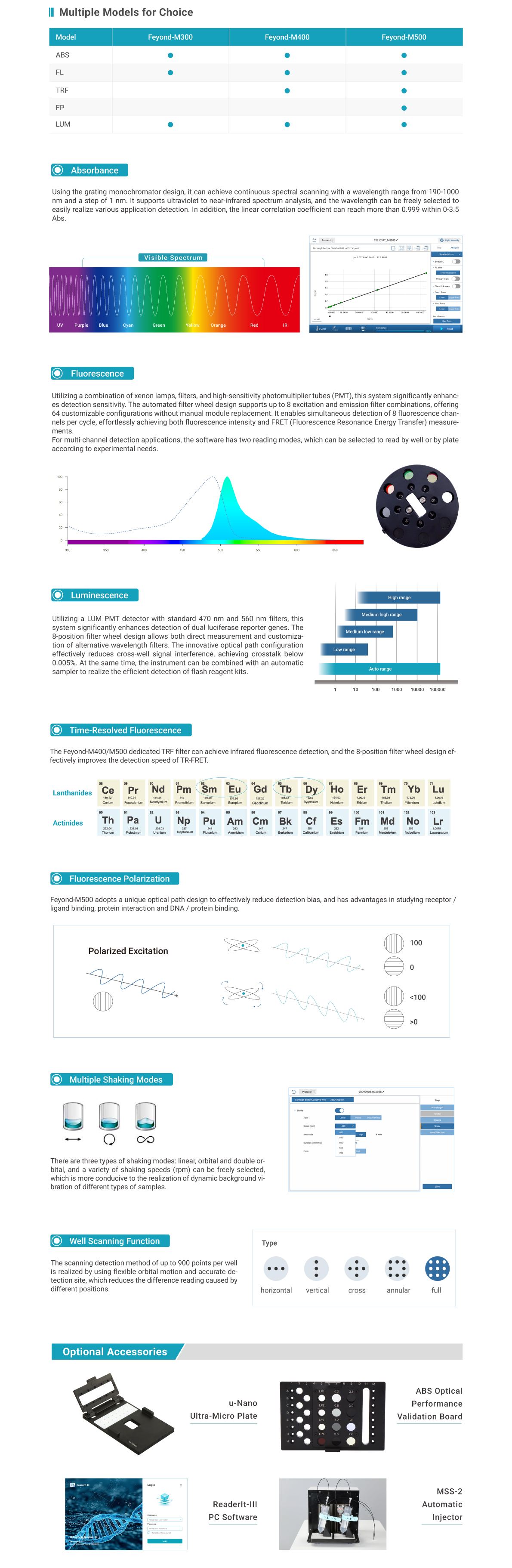

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information



  • Model
    Feyond-M300/M380/M400/M480/M500/M580
  • ABS
  • Light source
    Xenon lamp
  • Wavelength accuracy
    2 nm
  • Wavelength repeatability (SD)
    0.2 nm
  • Half width (FWHM)
    <2.5 nm
  • Detector
    PD×2
  • Wavelength range
    190-1000 nm, 1 nm step
  • Measure range
    0 - 4 OD
  • Resolution
    0.0001 OD
  • Accuracy @450 nm
    96-precision mode: ±(1.0%+0.003 Abs) @ (0.0-2.0 Abs] ±2.0% @ (2.0-3.0 Abs]
  • Repeatability @450 nm
    CV < 1.0% fast (0.0 - 3.0]; CV < 0.5% accurate (0.0 - 3.0]
  • Stray light
    0.1% @220 nm
  • Linear @450 nm
    R^2 ≥ 0.999 @ [0.0 - 3.0 Abs
  • Reading time
    96-well plate: fast <15 s (A1 to H1)
  • FL
  • Reading mode
    Top reading
  • Excitation light source
    Xenon lamp
  • Detector
    PMT
  • Wavelength range
    EX: 200 - 1000 nm; EM: 270 - 850 nm
  • Filter EX/EM
    3 groups: EX470/EM525, EX523/EM564, EX624/EM692 (other wavelengths can be replaced)
  • Linear dynamic range
    6 logs
  • Detection limit
    2 pM (optimization condition)
  • LUM
  • Detector
    PMT
  • Detection limit
    ≤25 amol/well @96-well white plate flash ATP
  • Linear dynamic range
    6 logs
  • Crosstalk
    ≤ 0.005%
  • Wavelength range
    200-850 nm
  • TRF
  • Filter EX/EM
    1 group: EX365/EM612
  • Detection limit
    0.02pM (optimization condition)
  • FP
  • Filter EX/EM
    1 group: EX485/EM530
  • Detection limit
    5 mP
  • Code
    Description
  • AS-19150-00
    Feyond-M300 microplate reader
  • AS-19160-00
    Feyond-M380 microplate reader (without screen)
  • AS-19170-00
    Feyond-M400 microplate reader
  • AS-19180-00
    Feyond-M480 microplate reader (without screen)
  • AS-19190-00
    Feyond-M500 microplate reader
  • AS-19200-00
    Feyond-M580 microplate reader (without screen)
  • AS-19051-02
    523-564 fluorescence filter (standard)
  • AS-19051-03
    624-692 fluorescence filter (standard)
  • AS-19111-01
    Readerlt-III PC analysis software
  • AS-19111-02
    470-525 fluorescence filter (standard)
  • AS-19011-02
    u-Nano ultra-micro plate
  • AS-19011-03
    ABS optical performance validation board
  • AS-19011-04
    MSS-2 automatic injector
