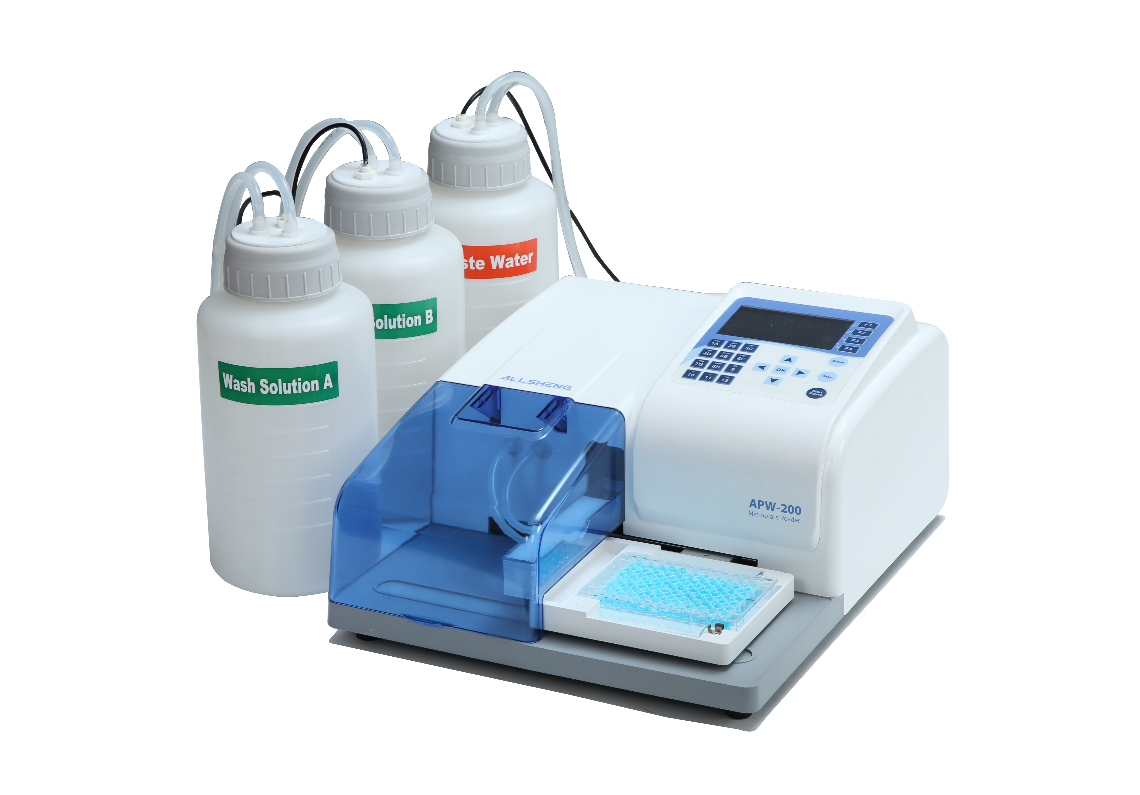

Microplate Washer — APW-200

Microplate washer is an automatic plate washer for washing 96-well microplate. compact construction, efficient washing and durable, it is suitable for the washing of flat bottom, U-shaped bottom, V-shaped bottom, C-shaped bottom of various specifications. It has various special functions selected and matched by other board washer. The programmed design is especially suitable for laboratory with heavy workload of multi-application of microplate. It can also be used to soak and shock.

Inquiry More

•Good and efficient plate washing effect

Low residual liquid volume, with an average of ≤1 μL per well. Eliminate high background signals to ensure reliable analysis results

Stacking the soaking and shaking functions of microplates can improve the efficiency of plate washing

Residual liquid cleaning function, supporting pipeline flushing and distilled water washing, ensuring that the cleaning effect is not affected by previous cleaning interference

•Easy to operate, cleaning different types of microplates at once

Adopting a 4.3 inch color LCD screen display, intuitive user interface and easy to understand

The uniform volume scale design of the detergent bottle facilitates the preparation of working solution

Washing head can be quickly replaced, making it easy to clean different types of microplates, suitable for different application requirements

With pause function, it can pause the current program or continue execution

Can automatically store 100 user washing programs, select and use them immediately

•Careful functions ensure performance

The built-in filter screen and automatic flushing function in the washing bottle pipeline prevent the washing solution from blocking the pipeline

Built in liquid level sensor, real-time monitoring of washing liquid and waste liquid, reducing the risk of liquid overflow and preventing washing liquid from being sucked into the pump body and damaging the instrument

The instrument is equipped with an alarm function for running out of cleaning solution and liquid waste reaching full capacity

The instrument comes with a USB flash card, which can be used to transfer programs and update internal software between a PC and a microplate washer, or between multiple microplate washers

Model

APW-200
Residual liquid

≤1 μL
Washing heads

1×8 or 1×12 heads
Plate types

Flat, U, V, C bottom
Washing method

Single-point, two-point and multi-point
Washing volume

50-2000 μL, increase by 50 μL
Washing times

1~99 times
Washing channels

3
Bottles

3 pcs 2.5 L washing bottle, 1 pcs 2.5 L washing bottle
Dispense accuracy

≤2 % @300 μL
Liquid injection accuracy

CV≤1.5 % @300 μL
Soaking and shaking time

99'00"
Date connection

USB
Weight

12 kg
Power supply

AC100-240 V; 50/60 Hz

Code

Description
AS-16020-00

APW-200 microplate washer AC100-240 V, 50/60 Hz
AS-16011-01

8 needles washing head
AS-16011-02

12 needles washing head
AS-16011-03

Washing liquid bottle
AS-16011-04

Waste liquid bottle
